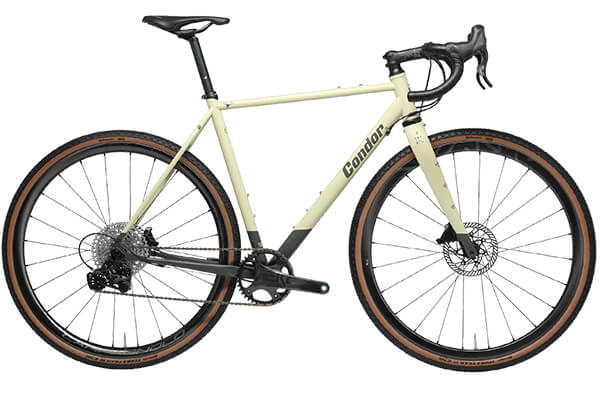

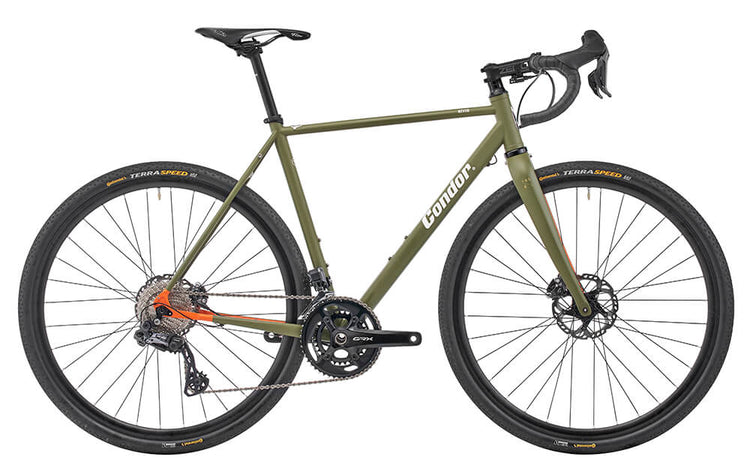

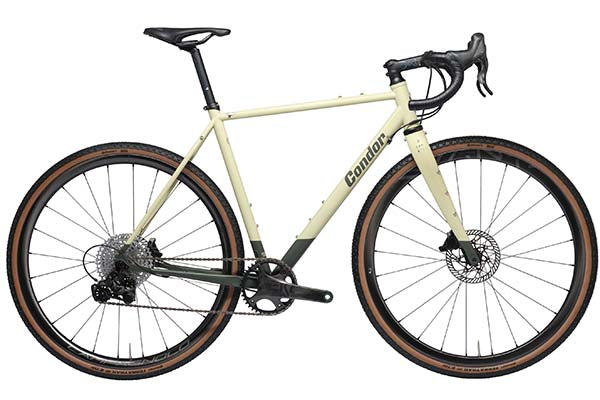

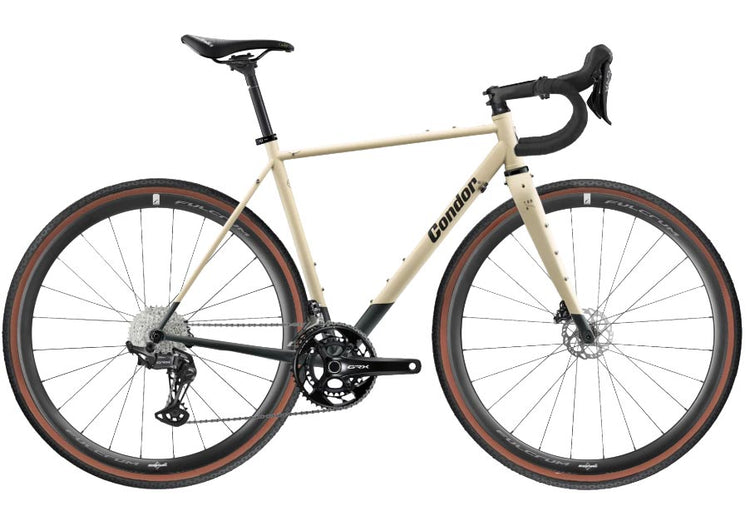

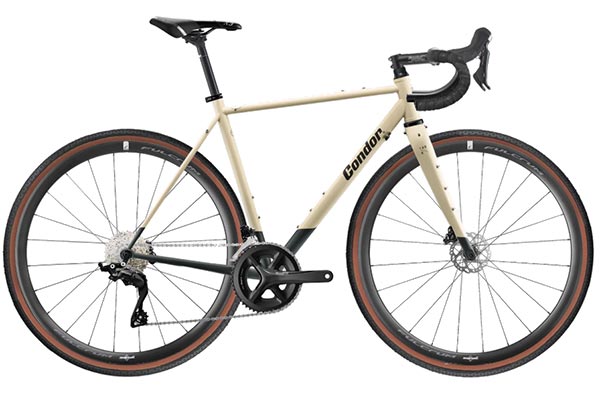

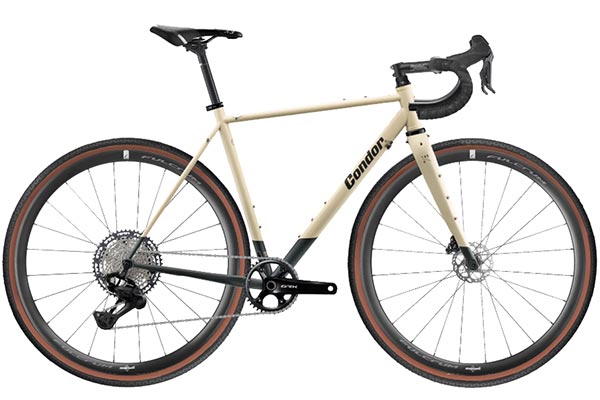

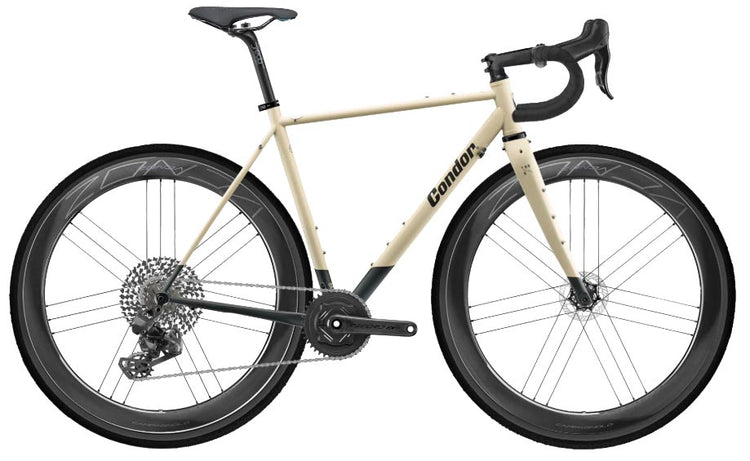

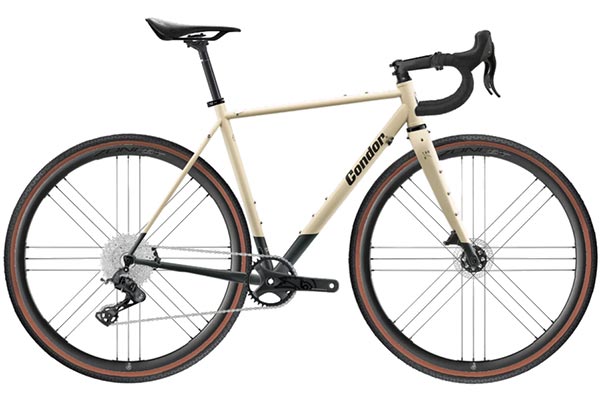

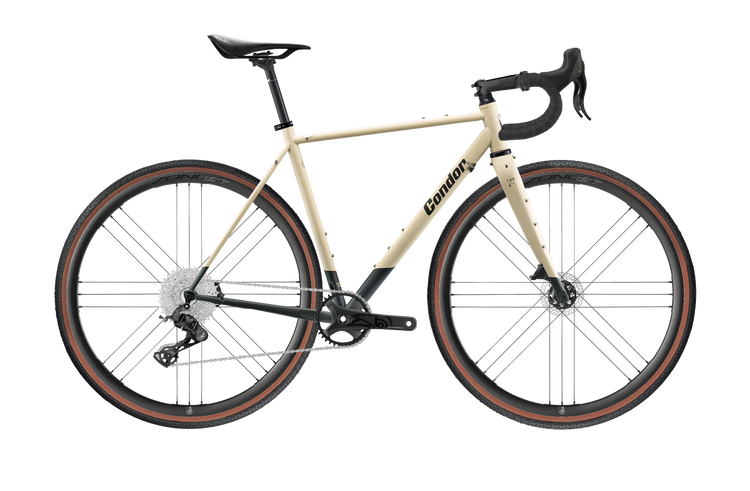

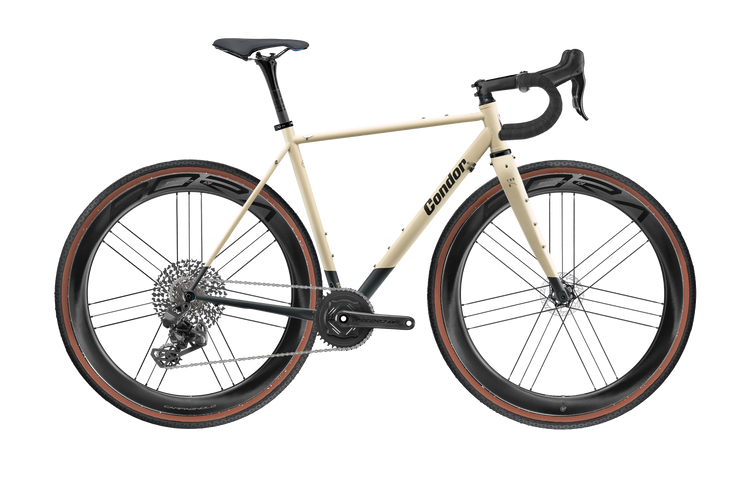

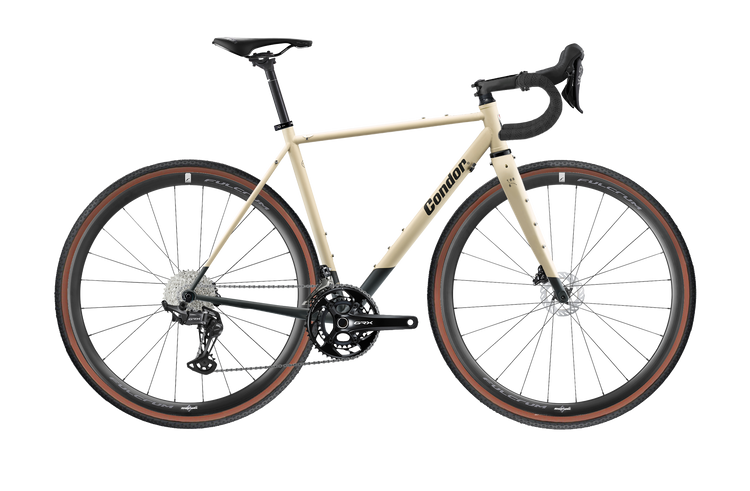

Bivio Gravel Thru-Axle
Discover new boundaries on our premium steel adventure frame
HEADSET & SEAT
HEADSET & SEAT CLAMP COLOUR
Know what you want?BUILD YOUR OWN
Free worldwide shipping on all frames.
5 Years Warranty
We've got you covered.
Bike Fitting Included
Simply visit us in store.
WHY YOU'LL LOVE IT
GEOMETRY & TECHNICAL

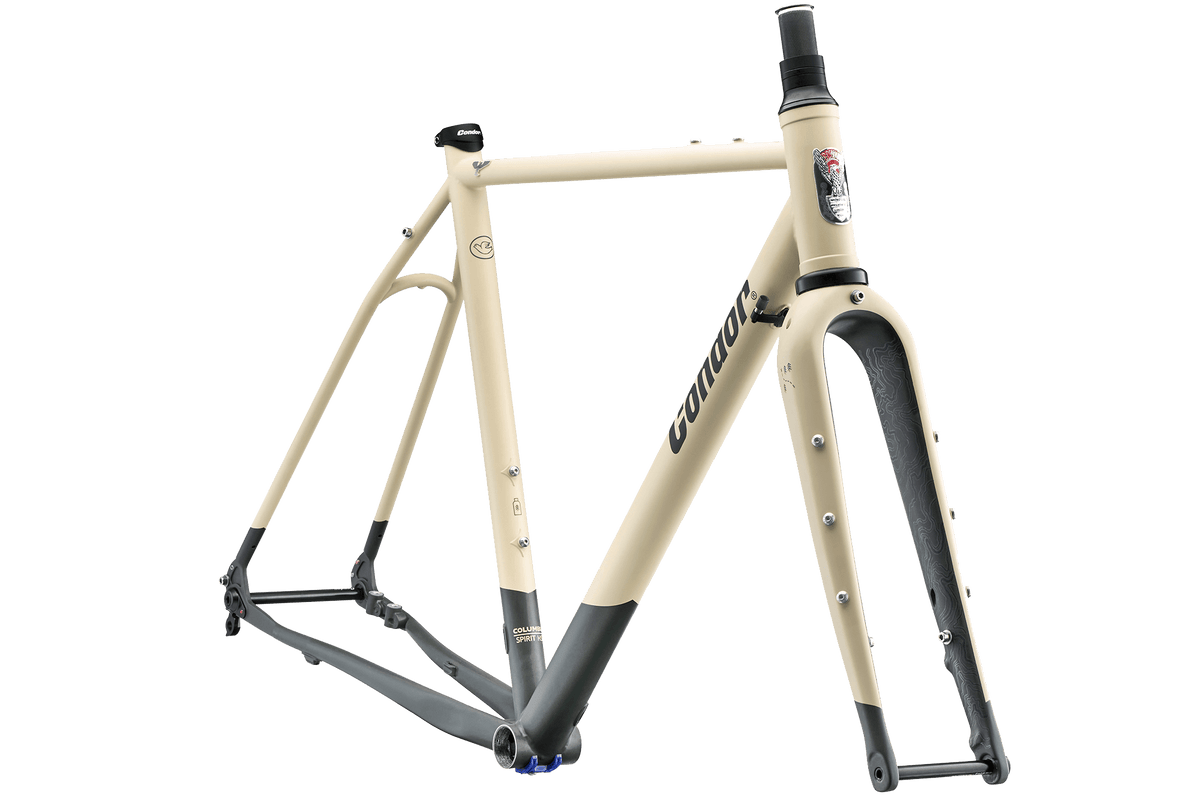

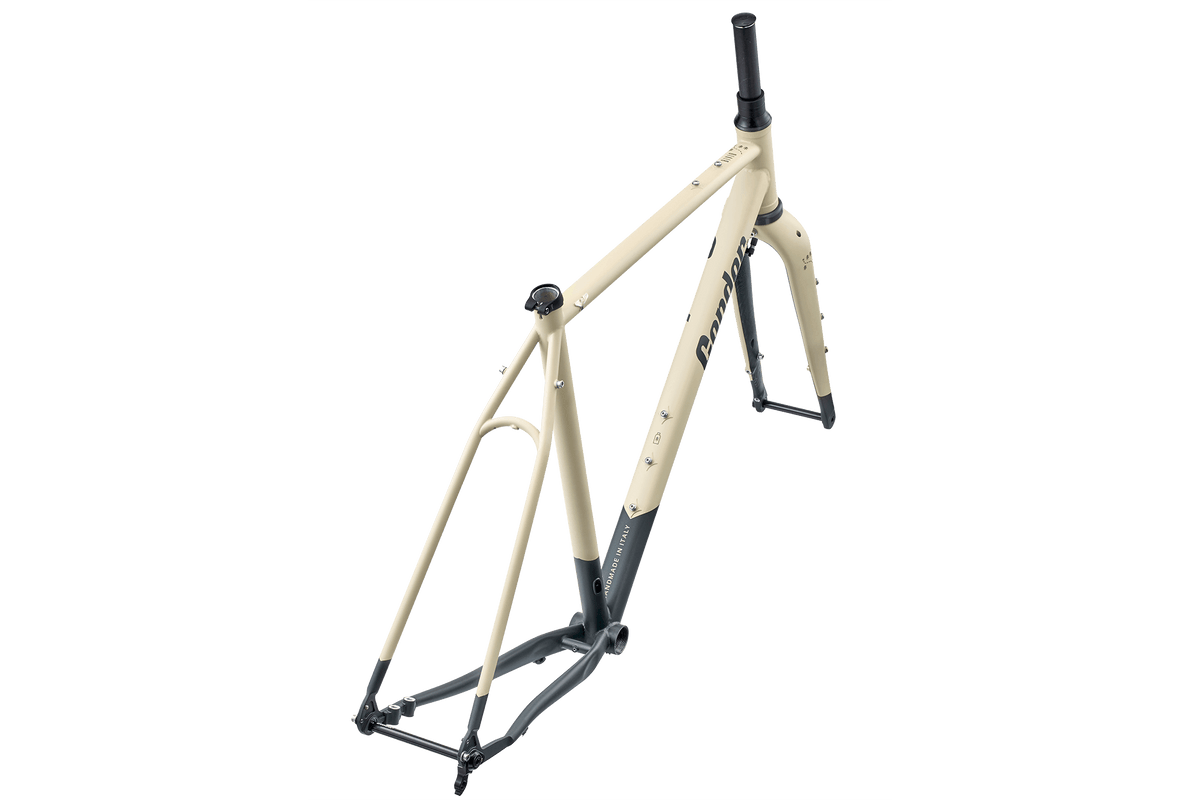

Custom triple-butted steel by Condor and Columbus, 2100g
Condor Gravel full carbon monocoque, 450g
Up to 42mm (700c) or 47mm (650b)
Flat mount disc
Mudguards and Rack
Mounts for full mudguards and rear rack
Why you'll love it
"Top-quality handbuilt steel frame that mixes impeccable handling, comfort and fun in one excellent package." July 2020 - Roadcc.
The Bivio Gravel was born for adventures across land, desert, and ice. Cruise over Tarmac-free roads or adapt it to be your 'do anything' commuter. Built from triple-butted, custom-formed Columbus Spirit tubing, the Bivio Gravel provides no-hassle, smooth riding, mile after mile.
The Bivio-Gravel features our tried and tested adventure geometry, similar to our endurance road bike geometry, so you can cover distances quickly or just cruise around exploring. We tuned the head angle and wheelbase to give you stable handling over twisty roots and rocks. For 2020, we have increased the tyre clearance to 42mm for 700c wheels and 47mm when running 650b. If you plan to tackle mud, snow or ice, the Bivio Gravel won't restrict your tyre choice.
On the frame you'll find mounts for racks and guards, plus everything you need for day-in-day out riding and the ultimate trip - whether it's a weekend of shredding, bikepacking, or gravel racing.
|Seat tube (centre to centre) [A]||41||44||47||50||53||56|
|Seat tube (centre to top) [B]||46||49||52||55||58||61|
|Top tube (horizontal) [C]||51.3||51.8||53.7||55.5||57||58|
|Seat tube angle [D]||74||73.5||73||73||73||72.5|
|Head tube angle [E]||71||71||72||72.5||72.5||73|
|Head tube length [F]||9||9.5||10.5||13.5||16.5||19.5|
|Chainstay length [G]||43||43||43||43||43||43.5|
|Bottom bracket height [H]||26.5||26.5||26.5||26.5||26.5||26.5|
10mm thru axle (front) & 12mm thru axle (rear)
Clearance for 42mm (700c) or 47mm (650b) tyres
Bottom bracket: BSA
Seat tube (internal): 27.2mm
Seat tube (external): 31.8mm
Front derailleur attachment: band-on
Thru-axles: 12x100mm (front); 12x142mm (rear)
Disc brake mounts: flat mount
Buying a bike or frame is easy! If you can visit us in-store, here is an overview of the process. Don't worry if you can't — we are here to provide advice on sizing, fit, and components by phone or email.
1. Chose your model
The frame is the foundation of a good bicyle. The first step is to choose a model. We make a wide range to suit all styles and disciplines. Out full range is available to view online and in-store, but don't worry if you're not sure what's right for you — we're here to help!
2. Have a fitting
No two people are the same. Once you've decided on your frame, book a free of charge bike fit to ensure that you'll ride in complete comfort and get the best performance from the bike. If you can't visit us in store, we can help by phone or email.
3. Make it your own
We'll work together to choose the components that suit your requirements and budget, right down to details such as the saddle and handlebar tape colour. You can try our online bike builder if you'd like to, and we are here to advise along the way.
4. We build it
Once we've selected your frame and components, we assemble your bike in London. Once your bike is built, we'll arrange a time and date with you for the handover, where we'll run through all aspects of the bike and can help with anything else you might need.
You can make a booking to come and see us below. Simply follow the link and select a date and time that suits you.
Gravel geometry and premium steel
Modern road geometry paired with off-road ability. We have relaxed the head angle and adjusted the chainstay length so you can comfortably cover kilometres on the road, as well as sweep, skid, and drift with glee on the trails.
Condor Smart Cabling
Our Smart Cabling system allows you to fit any groupset, whether it's mechanical or electronic. And if you want to change to Di2/EPS, mechanical, or eTAP in the future, you don't need to worry about messy cabling or compatibility.
Thru-axles not only keep the disc running straight, but also improve the stiffness of the frame. Paired with our monocoque carbon gravel race fork, the Bivio Gravel delivers stable, predictable steering on tough terrain.
Custom steel designed by Condor, made by Columbus
Columbus Spirit HSS is the highest level of steel produced by Columbus. The tubes are seamless, which means the tube is formed by stretching it without welding a joint. The tubes are triple-butted with a high tensile strength, and hardened using precipitation, enabling the tube to have an excellent surface and strength to weight ratio. The tubes are head treated to improve strength and resistance to damage. The nearest comparable tubing from Reynolds is 853.
Performance fork and 44mm head tube
We pair our performance steel with the lightest fork possible. Our gravel fork is full carbon monoccoque with integrated brake cable to keep it away from snagging branches and flying mud. Our 44mm head tube improves control around the technical trail and in slippery mud, so you have the confidence to stay off the brake and enjoy the ride.
