Acciaio

Fast and lightweight steel all rounder

Frameset £1,099.99
Size
Frame size Suggested height range
46cm 150–160cm / 4'8"–5'3"
49cm 161–168cm / 5'3"–5'6"
52cm 169–175cm / 5'6"–5'9"
55cm 176–185cm / 5'9"–6'0"
58cm 186–193cm / 6'0"–6'3"
61cm 194–200cm / 6'3"–6'6"
64cm 201cm+ / 6'6"+
Colour
HEADSET & SEAT
CLAMP COLOUR

You're Almost There

We're with you for the ride.

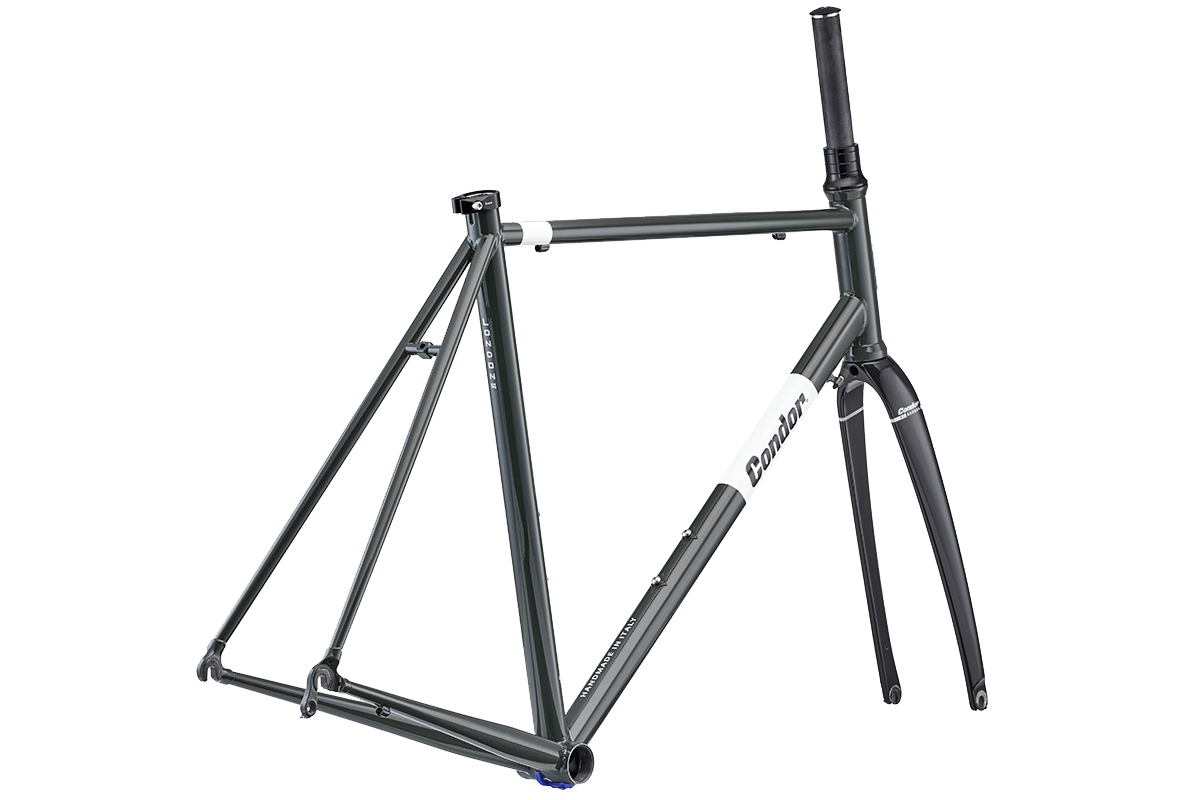

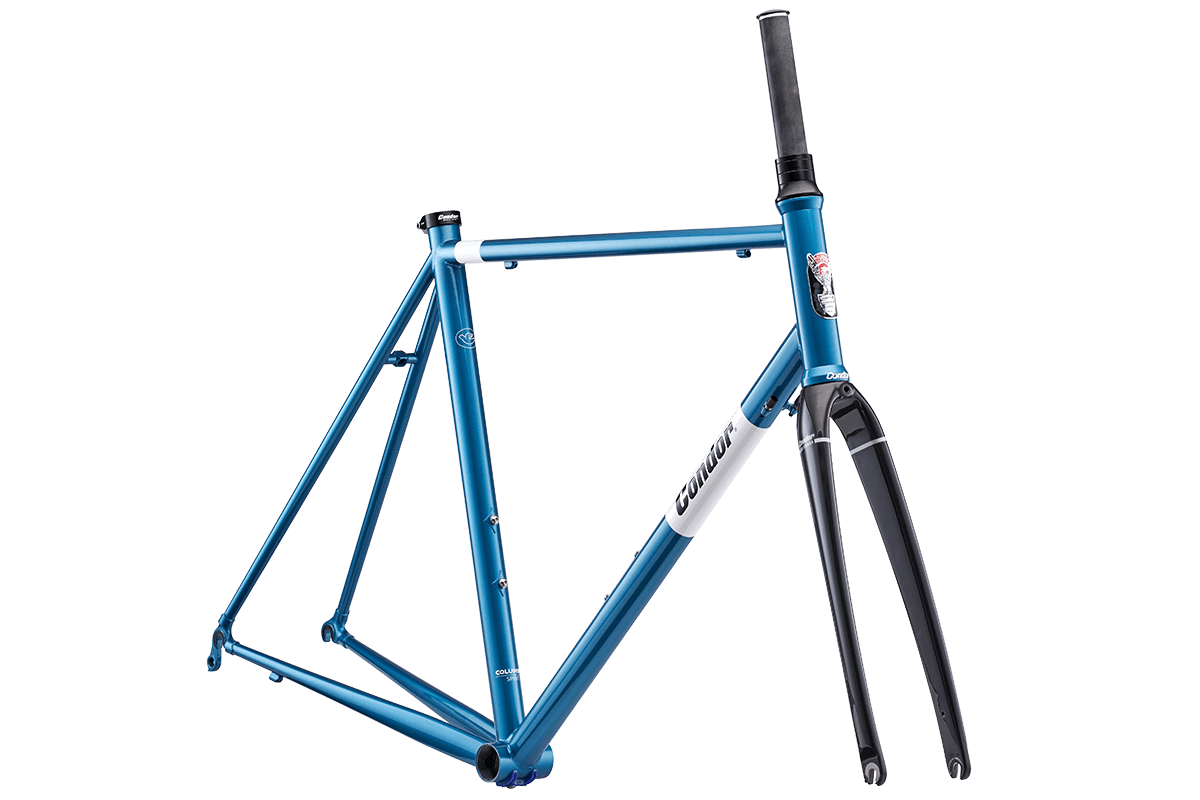

Your frameset will arrive fully prepared and ready to build with the forks and headset fitted and the fork steerer left uncut. If you have any special requirements please let us know in the order notes.

What's included?

Frame
Fork
Headset
Seat clamp

Delivery information

Shipping is free worldwide! Learn More
Would you like to add anything else? Choose from the most popular options below.
Deda Zero 100 Aluminium Seat Post 27.2MM - 12MM SET-BACK / BLACK ON BLACK
Deda Zero 100 Aluminium Seat Post 27.2MM - 12MM SET-BACK / BLACK ON BLACK

High quality lightweight aluminium seat post - Acciaio frameset require 27.2mm

+ £59.99
Deda Zero 100 Aluminium Seat Post 31.6MM - 12MM SET-BACK / BLACK ON BLACK
Deda Zero 100 Aluminium Seat Post 31.6MM - 12MM SET-BACK / BLACK ON BLACK

High quality lightweight aluminium seat post - Acciaio frameset require 27.2mm

+ £59.99
Deda Zero 100 Aluminium Seat Post 27.2MM - 0MM SET-BACK / BLACK ON BLACK
Deda Zero 100 Aluminium Seat Post 27.2MM - 0MM SET-BACK / BLACK ON BLACK

High quality lightweight aluminium seat post - Acciaio frameset require 27.2mm

+ £59.99
Deda Zero 100 Aluminium Seat Post 31.6MM - 0MM SET-BACK / BLACK ON BLACK
Deda Zero 100 Aluminium Seat Post 31.6MM - 0MM SET-BACK / BLACK ON BLACK

High quality lightweight aluminium seat post - Acciaio frameset require 27.2mm

+ £59.99
Upgrade to the 340g Acciaio Slim full carbon monocoque fork UPGRADE FROM RC CARBON FORK / CARBON
Upgrade to the 340g Acciaio Slim full carbon monocoque fork UPGRADE FROM RC CARBON FORK / CARBON

Upgrade to the 350g Acciaio Slim fork.

+ £90.00
Condor Strada Bottle Cage GLOSS BLACK
Condor Strada Bottle Cage GLOSS BLACK

Composite great value bottle cage.

+ £11.99
Condor Strada Bottle Cage MATT BLACK
Condor Strada Bottle Cage MATT BLACK

Composite great value bottle cage.

+ £11.99
Condor Acciaio Frameset
Condor Acciaio Frameset

Fast and lightweight steel all rounder

Frameset

Size
52CM
Colour
METALLIC BLUE
HEADSET & SEAT CLAMP COLOUR
black

Sub-total

£1,099.99
In Stock This item is in stock and ready for dispatch or store collection. This item is in stock and ready for dispatch or store collection. This product can only be delivered to certain countries. This item is available for collection only. Order now and pickup in store. This item is a pre-order and will be shipped when available.
Out Of Stock Sorry, currently out of stock.

Interested in a bike?

Let's Talk

Free Shipping

Free worldwide shipping on all frames.

5 Year Warranty

We've got you covered.

Bike Fitting Included

Simply visit us in store.

Frame

Dedacciai Zero Replica triple-butted steel with boron, 1800g

Fork

Condor RC Carbon, 615g

Complete Bike From

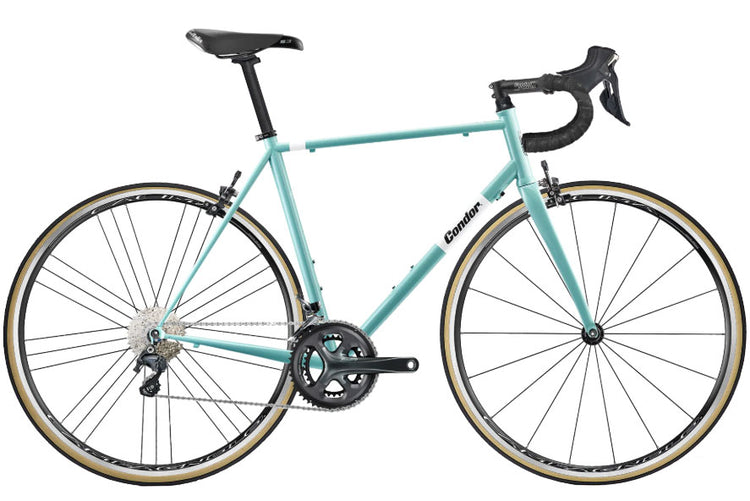

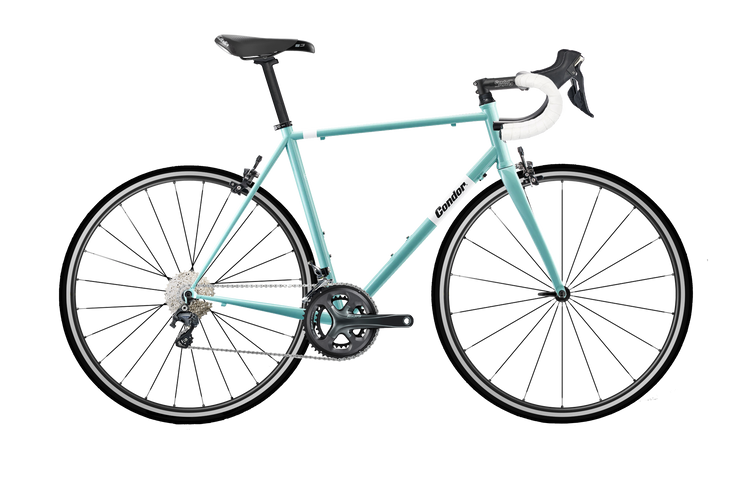

£1890.00 with Shimano Tiagra

Fit

Endurance

Frame Highlights

Superbly tig welded

Tyre Clearance

Up to 28mm

Why you'll love it

The Acciaio is built for long sojourns in the saddle and grand col mountain climbing. It has a longer wheelbase and slightly taller head tube than our frames with race geometry to reduce rider fatigue on gruelling big ride days. The Acciaio is a lightweight and responsive frameset. The presence of carbon, magnesium, molybdenum and vanadium in the steel tubing creates stiffness, allowing you to push the limits of your fitness. A taller head tube blended with race geometry puts this frame at home on any race circuit or gruelling sportive.

Frame Geometry Diagram
46 49 52 55 58 61 64
Seat tube (centre to centre) [A] 42 45 48 51 54 57 60
Seat tube (centre to top) [B] 46 49 52 55 58 61 64
Top tube (horizontal) [C] 51.3 51.8 53.7 55.5 57 58 59
Seat tube angle [D] 75 74 74 73.5 73 72.5 72.5
Head tube angle [E] 71 71.5 72 73.5 74 74 74
Head tube length [F] 11 12 14.5 17.5 20.5 23.5 25.5
Chainstay length [G] 40.5 40.5 40.5 40.5 40.8 41 41
Bottom bracket height [H] 26.5 26.5 26.5 26.5 26.5 26.5 26.5
Bottom bracket drop 70 70 70 70 70 70 70
Stack 50.7 51.8 54.4 57.7 60.8 63.7 65.6
Reach 37.7 36.9 38.1 38.4 38.4 37.9 38.3
Fork offset 4.5 4.5 4.5 4.5 4.5 4.5 4.5
Fork length 36.7 36.7 36.7 36.7 36.7 36.7 36.7

Bottom bracket: BSA
Seat tube (internal): 27.2mm
Seat tube (external): 31.8mm
Front derailleur attachment: band-on
Headset: 1-1/8" integrated
O.L.D.: 130mm

If you would like to visit us in the store, here is how the process works.

how-it-works-magnifying-glass

1. Chose your model

We make a wide range to suit all styles and disciplines. Our full range is available to view online and in-store, but don't worry if you're not sure what's right for you — we're here to help!

2. Have a fitting

We'll ensure that you'll ride in complete comfort and get the best performance from your bike. If you can't visit us in store, we can help with the fit by phone or email.

3. Make it your own

We'll work with you to choose components that suit your requirements, right down to details such as handlebar tape colour. We are here to advise on everything.

4. We build it

We'll assemble your bike in London. Once built, we'll arrange a time and date with you for the handover, where we'll run through everything and help with anything else you may need.

If you can’t book an appointment to visit us in-store, we can help by phone, email, or live chat..

Performance steel tubeset

Performance steel tubeset

Our lightweight steel tubeset is custom drawn for Condor by Italian tube manufacturer, Dedacciai. Featuring carbon, magnesium, molybdenum and vanadium in the steel, the tubes are triple-butted to create a light and responsive ride.

Expertly tig welded

Expertly tig welded

Tig welding is an art. The welds on our Acciaio are impossibly neat and brilliantly finished. This means that minimum weight is added through the welding process but ensures the join is strong.

Race engineered carbon fork

Race engineered carbon fork

Made from carbon, the lightweight fork is engineered to provide a direct feel with the road, so you can pounce out the saddle to attack a short rise as well as feel comfortable over rough tarmac.

Cable adjuster

Classic style cable adjuster

The Acciaio balances modern performance within a classic features. We weld the mount to the frame to give a sleek finish suitable for any type of mechanical groupset from Shimano's latest Dura-Ace to classic silver Campagnolo.
