Fratello Disc
Clock new KOMs, speed through town, and beat winter on our signature steel frameset
Condor Strada Carbon Seatpost - Setback 27.2MM X 350MM / UD CARBON
Portland Design Works Full Metal Fenders - Road Plus (37mm) 37MM / BLACK/BLACK STAYS
Black Bottle Cage & Mount Bolt Kit

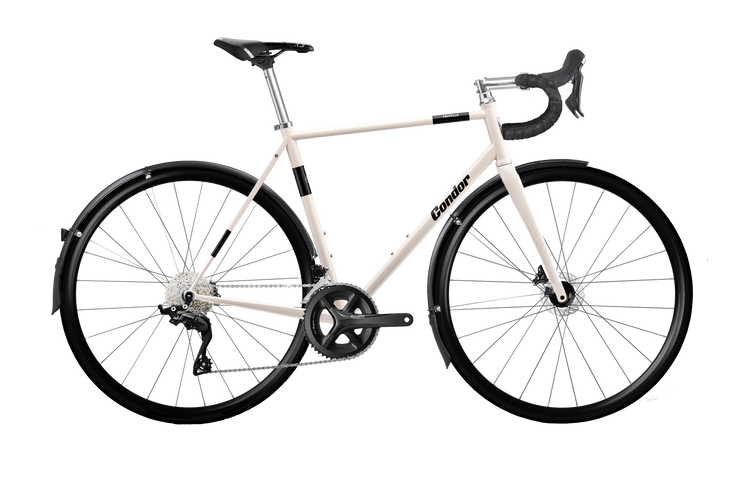

Fratello Disc with Tiagra Hydro 10-Speed
Fratello Disc with 105 Di2 Disc 12-Speed

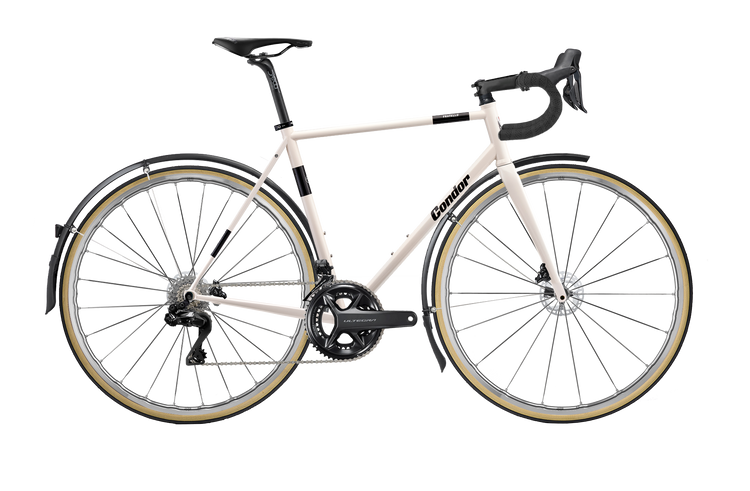

Fratello Disc with Ultegra Di2 Disc 12-Speed
Interested in a bike?
Book an appointment
Handmade in Italy
Built by hand since 1948.
5 Year Warranty
We've got you covered.
Bike Fitting Included
Simply visit us in store.
Frame
Columbus Spirit triple-butted steel, 1950g
Fork
Condor Pioggia Disc full carbon monocoque, 430g
Tyre Clearance
Up to 32mm
Fit
Endurance
Mudguards
Mudguard and rack compatible
Brake Type
Flat mount disc
About this model
A sporty all-rounder, the Fratello has been our number one frame for over a decade. Our new disc version features 12mm thru-axles at the front and rear, and flat mount disc brake mounts. In its creation, we focused on bringing a dynamic ride quality to the frame so you can get up to speed quickly through town as well as clocking new KOMs on long rides.
The Fratello is the king of versatility, making it the go-to frame for riding across all type of paved terrain. If you don't have space for a stable of bikes but want lightweight performance and the unique comfort of steel. Our new 12mm thru-axles stiffen the frame, creating a responsive feel when you accelerate or climb out of the saddle.
We build the Fratello with lightweight, custom-shaped Columbus Spirit tubing. This responsive triple-butted steel is lively and exciting to ride, whatever the weather.
| 46 | 49 | 52 | 55 | 58 | 61 | 64 | |
|---|---|---|---|---|---|---|---|
| Rider height guide (cm) | 150–160 | 161–16 | 169–175 | 176–185 | 186–193 | 194–200 | 201+ |
| Rider height guide (in) | 4'11"–5'3" | 5'3"–5'6" | 5'6"–5'9" | 5'9"–6'0" | 6'0"–6'3" | 6'3"–6'6" | 6'6"+ |
| Seat tube (centre to centre) [A] (cm) | 42 | 45 | 48 | 51 | 54 | 57 | 60 |
| Seat tube (centre to top) [B] (cm) | 46 | 49 | 52 | 55 | 58 | 61 | 64 |
| Top tube (horizontal) [C] (cm) | 51.3 | 51.8 | 53.7 | 55.5 | 57 | 58 | 59 |
| Seat tube angle [D] (cm) | 75 | 74 | 74 | 73.5 | 73 | 72.5 | 72.5 |
| Head tube angle [E] (cm) | 71 | 71.5 | 72 | 73.5 | 73.5 | 73.5 | 73.5 |
| Head tube length [F] (cm) | 11 | 12 | 14.5 | 17.5 | 20.5 | 23.5 | 25.5 |
| Chainstay length [G] (cm) | 42.5 | 42.5 | 42.5 | 42.5 | 43 | 43 | 43.5 |
| Bottom bracket height [H] (cm) | 26.5 | 26.5 | 26.5 | 26.5 | 26.5 | 26.5 | 26.5 |
| Bottom bracket drop (mm) | 70 | 70 | 70 | 70 | 70 | 70 | 70 |
| Stack (cm) | 51.8 | 52.9 | 55.4 | 58.8 | 61.7 | 64.6 | 66.5 |
| Reach (cm) | 37.4 | 36.6 | 37.8 | 38.1 | 38.1 | 37.6 | 38 |
| Fork offset (mm) | 45 | 45 | 45 | 45 | 45 | 45 | 45 |
| Fork length (cm) | 37.8 | 37.8 | 37.8 | 37.8 | 37.8 | 37.8 | 37.8 |
Bottom bracket: BSA threaded
Seat tube (internal): 27.2mm
Seat tube (external): 31.8mm
Front derailleur attachment: band-on
Headset: 1-1/8" integrated
O.L.D.: 142mm
Thru-axles: 12x100mm (front); 12x142mm (rear)
Disc brake mounts: flat mount
We supply a full set of both electronic and manual guides and blanking plates for smart cabling framesets, including a piece of cable noise protector for the internal cabling to go through the BB.
If you would like to visit us in the store, here is how the process works.
1. Choose your model
We make a wide range to suit all styles and disciplines. Our full range is available to view online and in-store, but don't worry if you're not sure what's right for you — we're here to help!
2. Have a fitting
We'll ensure that you'll ride in complete comfort and get the best performance from your bike. If you can't visit us in store, we can help with the fit by phone or email.
3. Make it your own
We'll work with you to choose components that suit your requirements, right down to details such as handlebar tape colour. We are here to advise on everything.
4. We build it
We'll assemble your bike in London. Once built, we'll arrange a time and date with you for the handover, where we'll run through everything and help with anything else you may need.
If you can’t book an appointment to visit us in-store, we can help by phone, email, or live chat
Compliance is confidence
We balance premium Columbus Spirit triple-butted tubing with a tried and tested ride geometry. The length of the chainstays puts the rear wheel under the rider to keep handling nimble and acceleration lively, without compromising control.
Maximum versatility
Get the grip and comfort benefits of 32mm wide tyres, and ride confidently on taxing surfaces and in difficult weather without having to forgo full mudguards. Fit a rack and increase your carrying capacity.
Condor Smart Cabling
Our Smart Cabling system makes the frame compatible with all groupsets, whether it's mechanical or electronic. Never worry about messy cabling or redundant frame holes again. The new Fratello Thru-Axle fork has internal routing for dynamo cabling, too. Learn more about Smart Cabling
Rust inhibiting treatment
After being welded, filed and cleaned, our steel frames are dipped in a rust inhibiting treatment. The treatment provides a degree of protection, particularly inside the frame, against corrosion caused by acidic substances (including water). Read more
Perfect geometry for every ride
The geometry of our number one frame is enjoyed worldwide. A slacker head tube compared with our performance range gives you control over tricky surfaces, confidence in busy traffic situations, and the ability to ride all day in comfort.
Ovalised tubes
The down tube begins ovalised and becomes hexagonal the bottom bracket; the flattened top tube with a squarer shape makes the tube stronger where stress is greatest, but without adding material. The result: our lightest Fratello frame to date.
Threaded bottom bracket
Condor frames feature a BSA threaded bottom bracket shell. It's an overlooked part of the frame, but a very important one. The lowly bottom bracket doesn’t get much attention, and if it's working properly, that's the way it should be — smooth and silent. BSA is a tried and tested, reliable system, preferred by the two of the most popular component makers, Shimano and Campagnolo. To make life easier, bottom brackets to fit this standard are available from just about anywhere. Fitting a BSA bottom bracket is simple, and the tool required is inexpensive.
Reflective decals
All the decals on the frame are reflective. The decal utilises high index glass beads dispersed evenly on a thin flexible film to create retro-reflectivity. The high reflectivity of the black or silver decals give you an extra added level of visibility from other angles when commuting, audax riding or winter training
