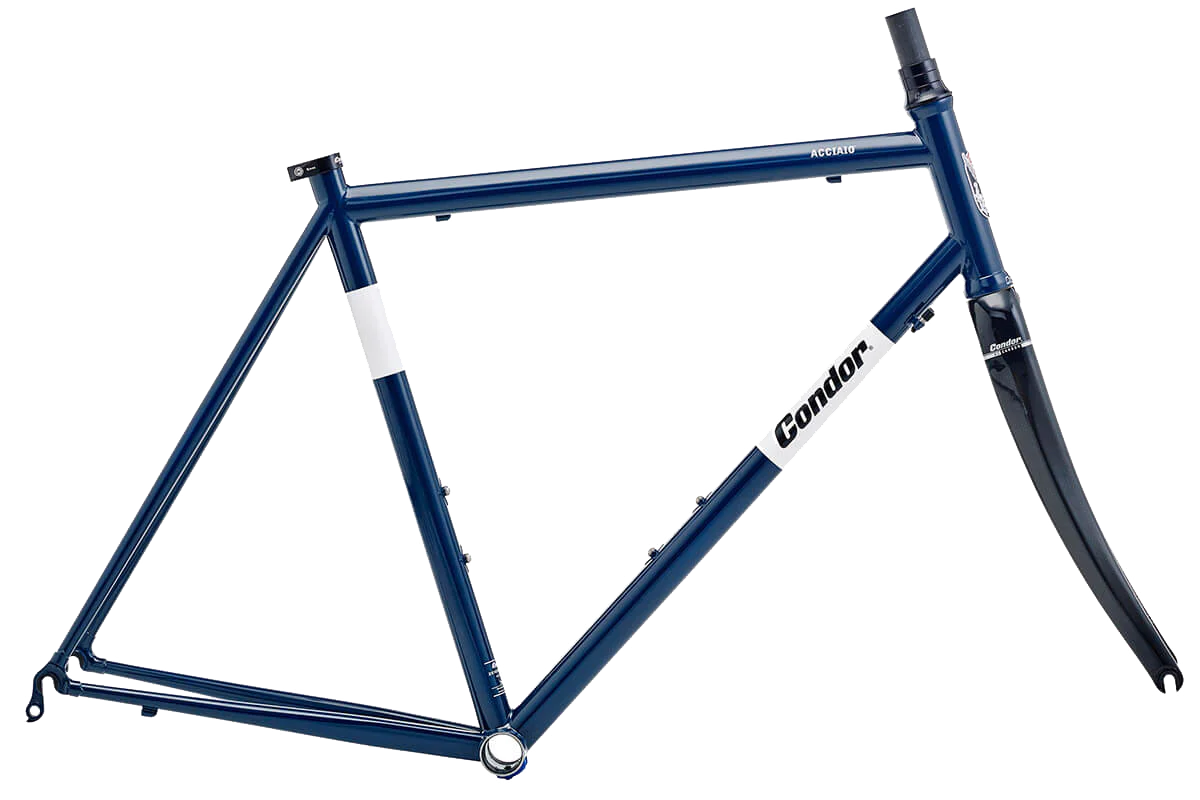

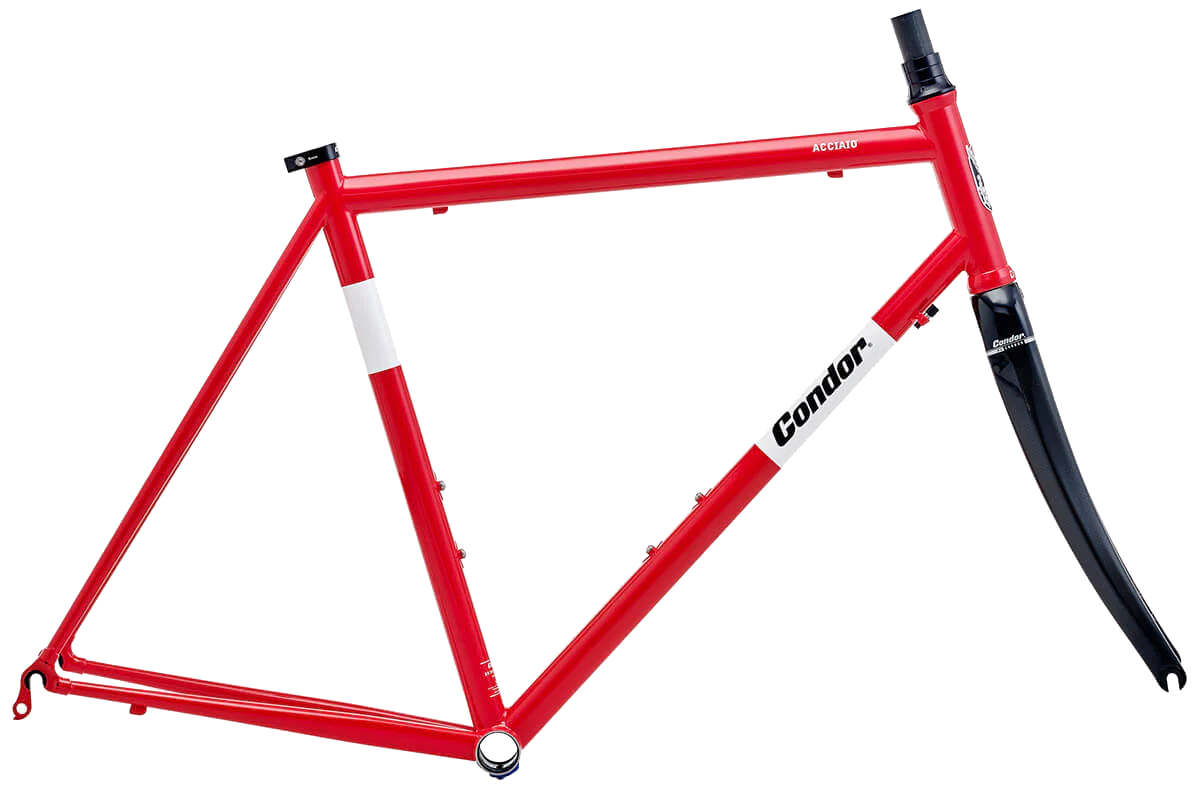

Acciaio
Fast and lightweight steel all rounder with 2019 colourway
Upgrade to the 340g Acciaio Slim full carbon monocoque fork UPGRADE FROM RC CARBON FORK / CARBON

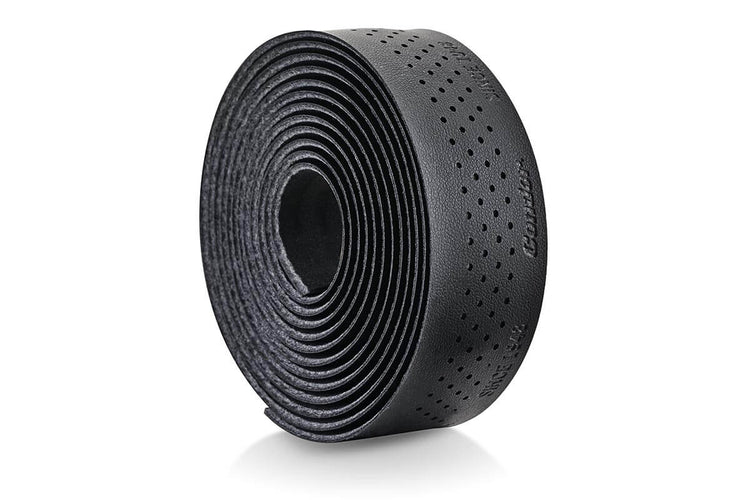

Condor Supremacy Reflective Microfibre Comfort Handlebar Tape 3MM / BLACK REFLECTIVE
Interested in a bike?
Book an appointment
Handmade in Italy
Built by hand since 1948.
5 Year Warranty
We've got you covered.
Bike Fitting Included
Simply visit us in store.
Frame
Dedacciai Zero Replica triple-butted steel with boron, 1800g
Fork
Condor RC Carbon, 615g
Fit
Endurance
Frame Features
Superbly tig welded
Tyre Clearance
25mm
Brake Type
Rim Brake, standard reach
Why you'll love it
The Acciaio is built for long sojourns in the saddle and grand col mountain climbing. It has a longer wheelbase and slightly taller head tube than our frames with race geometry to reduce rider fatigue on gruelling big ride days. The Acciaio is a lightweight and responsive frameset. The presence of carbon, magnesium, molybdenum and vanadium in the steel tubing creates stiffness, allowing you to push the limits of your fitness. A taller head tube blended with race geometry puts this frame at home on any race circuit or gruelling sportive.
| 46 | 49 | 52 | 55 | 58 | 61 | 64 | |
|---|---|---|---|---|---|---|---|
| Seat tube (centre to centre) [A] | 42 | 45 | 48 | 51 | 54 | 57 | 60 |
| Seat tube (centre to top) [B] | 46 | 49 | 52 | 55 | 58 | 61 | 64 |
| Top tube (horizontal) [C] | 51.3 | 51.8 | 53.7 | 55.5 | 57 | 58 | 59 |
| Seat tube angle [D] | 75 | 74 | 74 | 73.5 | 73 | 72.5 | 72.5 |
| Head tube angle [E] | 71 | 71.5 | 72 | 73.5 | 74 | 74 | 74 |
| Head tube length [F] | 11 | 12 | 14.5 | 17.5 | 20.5 | 23.5 | 25.5 |
| Chainstay length [G] | 40.5 | 40.5 | 40.5 | 40.5 | 40.8 | 41 | 41 |
| Bottom bracket height [H] | 26.5 | 26.5 | 26.5 | 26.5 | 26.5 | 26.5 | 26.5 |
| Bottom bracket drop | 70 | 70 | 70 | 70 | 70 | 70 | 70 |
| Stack | 50.7 | 51.8 | 54.4 | 57.7 | 60.8 | 63.7 | 65.6 |
| Reach | 37.7 | 36.9 | 38.1 | 38.4 | 38.4 | 37.9 | 38.3 |
| Fork offset | 4.5 | 4.5 | 4.5 | 4.5 | 4.5 | 4.5 | 4.5 |
| Fork length | 36.7 | 36.7 | 36.7 | 36.7 | 36.7 | 36.7 | 36.7 |
Bottom bracket: BSA
Seat tube (internal): 27.2mm
Seat tube (external): 31.8mm
Front derailleur attachment: band-on
Headset: 1-1/8" integrated
O.L.D.: 130mm
If you would like to visit us in the store, here is how the process works.
1. Choose your model
We make a wide range to suit all styles and disciplines. Our full range is available to view online and in-store, but don't worry if you're not sure what's right for you — we're here to help!
2. Have a fitting
We'll ensure that you'll ride in complete comfort and get the best performance from your bike. If you can't visit us in store, we can help with the fit by phone or email.
3. Make it your own
We'll work with you to choose components that suit your requirements, right down to details such as handlebar tape colour. We are here to advise on everything.
4. We build it
We'll assemble your bike in London. Once built, we'll arrange a time and date with you for the handover, where we'll run through everything and help with anything else you may need.
If you can’t book an appointment to visit us in-store, we can help by phone, email, or live chat
Performance steel tubeset
Our lightweight steel tubeset is custom drawn for Condor by Italian tube manufacturer, Dedacciai. Featuring carbon, magnesium, molybdenum and vanadium in the steel, the tubes are triple-butted to create a light and responsive ride.
Race engineered carbon fork
Made from carbon, the lightweight fork is engineered to provide a direct feel with the road, so you can pounce out the saddle to attack a short rise as well as feel comfortable over rough tarmac.
Investment cast lugged dropouts
The classically styled lugged drop out provide enhanced durability under the forces of daily pedalling pressures.
Etched detailing
Condor logo is etched across the headtube and bottom bracket.
