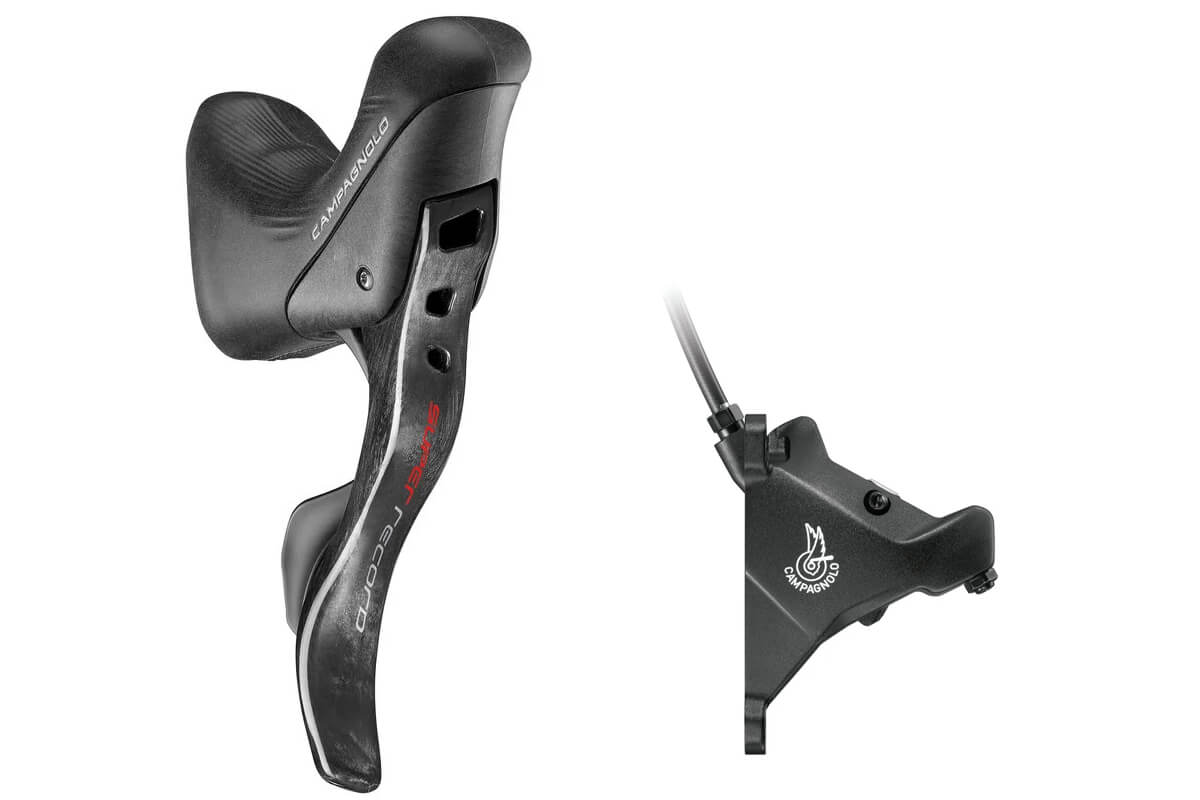

Campagnolo Super Record 12 Speed Hydraulic Ergo Lever & Disc Caliper Set

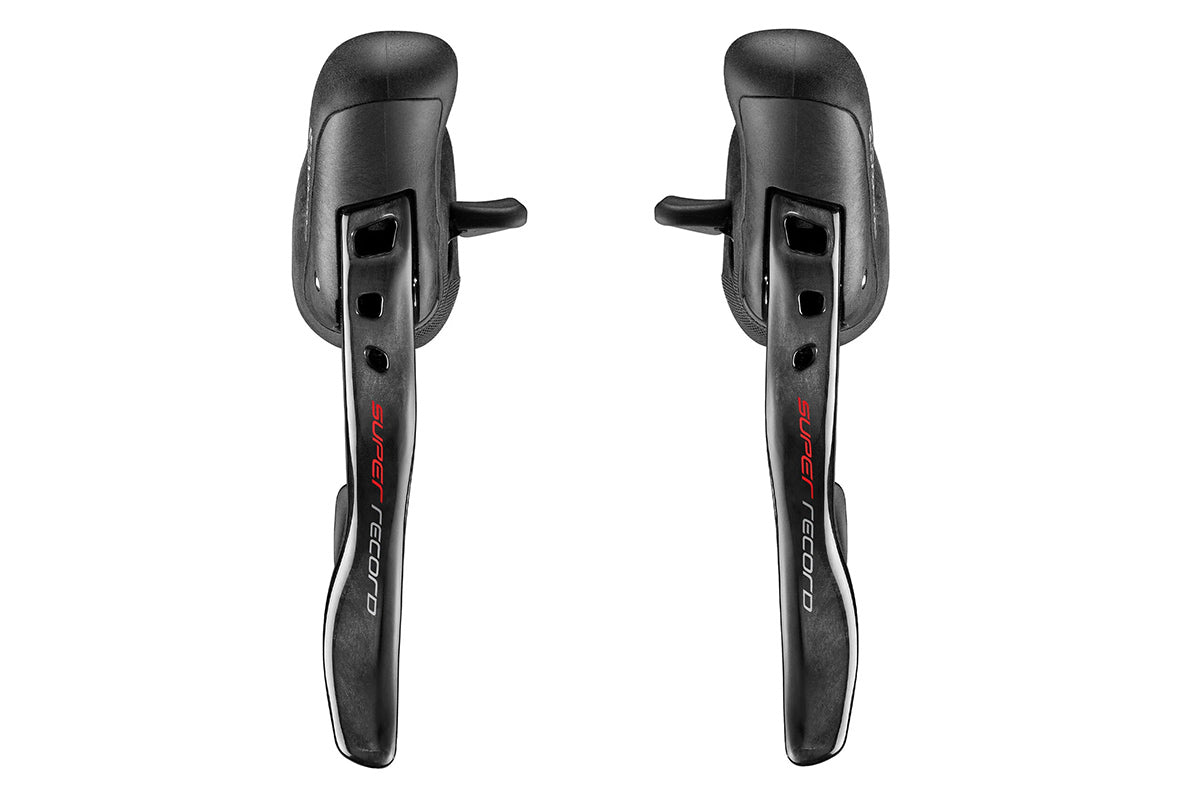

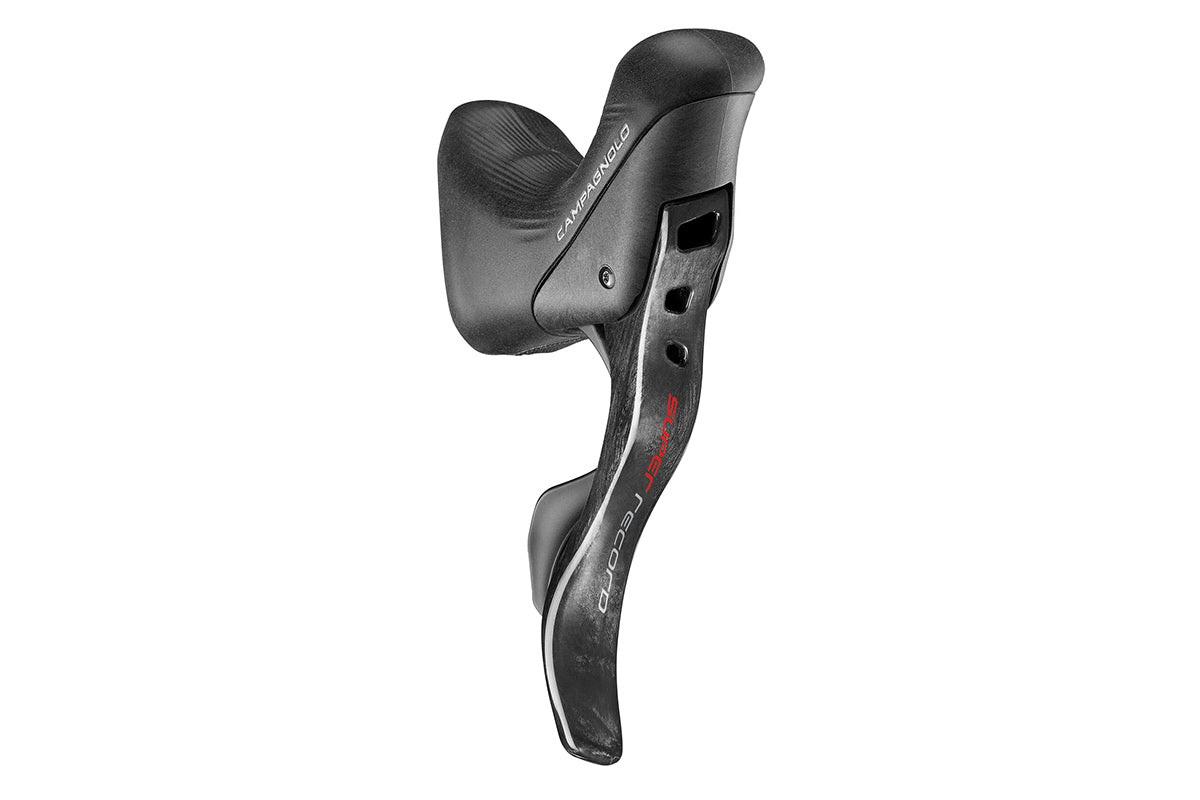

Super Record Disc Brake Ergopower Controls:
More ergonomic, more precise, more powerful and easier to maintain.
Comfort, control, speed and responsiveness are some of the main features of a bike's controls, helping keep all situations under control. The new mechanical controls for the Ergopower Super Record™ 12x2 Speed Disc Brake offer an ergonomic, comfortable and safe support and grip thanks to Vari-Cushion technology, essential for those who stay on the saddle for several hours.
The controls’ inner workings are a concentration of technology and experience, starting with the "one lever-one action" function, which assigns each lever a single function, helping avoid shifting errors at tired or distracting moments, and then continue with the multiple shifting option which allows up- or downshifting by up to 5 sprockets at a time thanks to the Ultra-Shift mechanism. This function allows you to maintain cadence even in case of sudden changes of incline or rhythm, with speed and ease as useful as it is surprising.
The Super Record Disc Brake brake levers are engineered with a double curvature for improved grip and are lightened with two slots that are added to the one dedicated to Reach Adjustment.
Comfortable support - The controls can be safely and securely gripped when riding out of the saddle or on the tops of the handlebars. Quick shifting The immediate shifting allows operation of the derailleurs with minimal effort, from any position on the handlebars. Multiple shifting A sudden climb, a lightning-fast movement: finding just the right ratio takes but a moment thanks to the multiple action shifters.
Ergonomics - The contoured support and reach adjustment mean these controls can be used by all cyclists, regardless of the size of their hands and fingers.

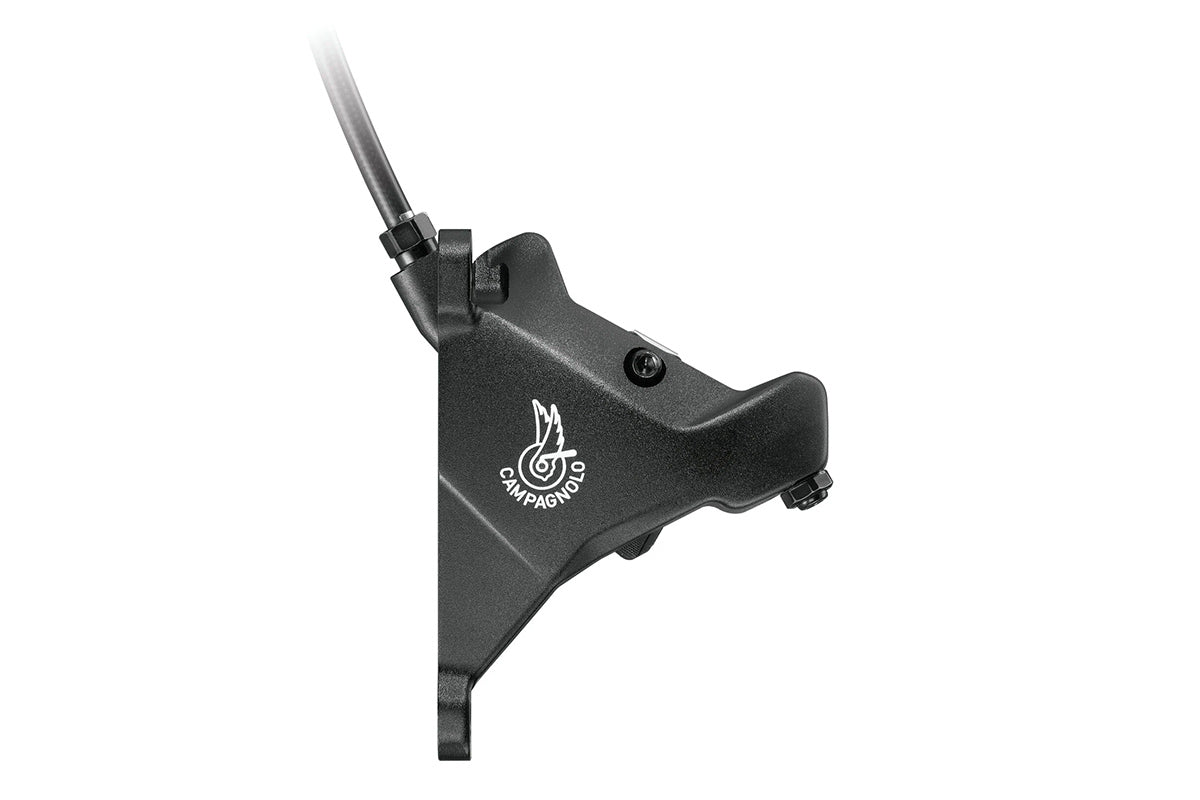

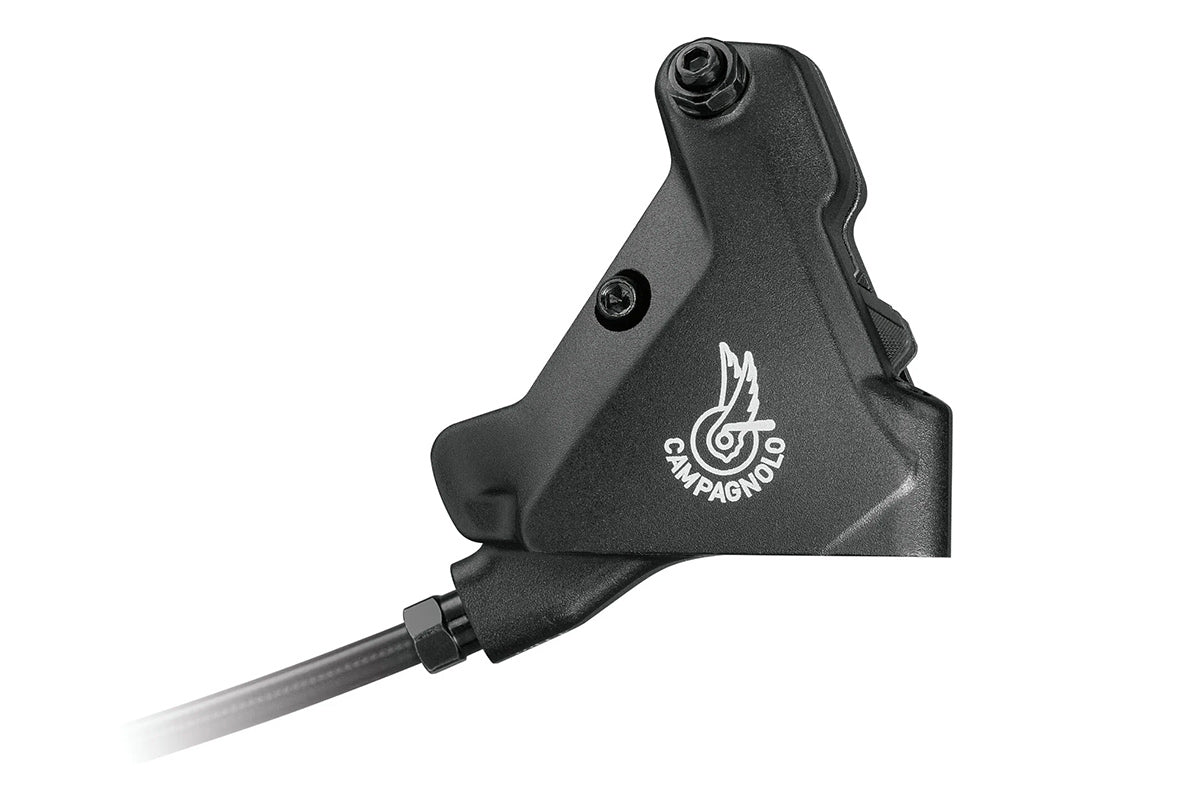

Disc Caliper:
The flat-mount Campagnolo brake calipers ensure powerful, modular braking in any situation owing to pistons measuring 22 millimetres in diameter. The pad return is now optimised to ensure that there is no friction when the brake lever is released.
A special metal plate positioned between the pad and the caliper piston, cushions the vibrations during braking. The different Campagnolo brake calipers were designed to be mounted together with the disc chosen by the rider and to always guarantee the highest level of performance.
It is indeed possible to choose the brake caliper with a disc measuring either 140 mm (limited to cyclists weighing no more than 82 kg) or 160 mm in diameter. Careful attention was given to making maintenance and assembly operations easy: the pads have wear indicators and replacing them is facilitated by the absence of physical return springs. Additionally, work was done on the insertion of the disc in the caliper to make changing the wheel easier and faster.
Standard Flat Mount - Fully compatible with flat-mount frames. 22 mm pistons in phenolic resin Braking force and thermal isolation. Piston-calliper connector The return action of the pistons is now optimised, rapidly returning the pads to their position and thus ensuring an overall clearance between pad and disc of 0.4-0.8 mm, with no risk of accidental contact.
Interchangeable spare parts: pads, cylinder, screws, bolts (same for all callipers) Fully compatible and optimised spare parts, making maintenance practical and reducing the number of components to keep on hand in the warehouse.
Wear indicator: It is very easy to see when the pads need to be replaced. Rounded brake pads These facilitate disc insertion and speed up wheel changing. Anti-vibration plate Optimal braking without vibrations. Two fixing screws Rapid installation and maintenance.
- Lever weight: 462 gr
- Caliper weight 118 gr. (140 mm, 1 pz- pads included)
- Length The rear screws are available in six lengths - Screw thickness and length 10 – 14 19 / 15 – 19 24 / 20 – 24 29 / 25 – 29 34 / 30 – 34 39 / 35 – 39 44
- Combinations 160 mm Ant. - 160 mm Post. - 140 mm Post .
