Tools required
Allen Key
In the size 6mm or 8mm, an allen key is required for Time, Look and Crank Brother, Shimano Dura-Ace pedals
15mm Wrench
Ideal for removing flat pedals and Shimano pedals with ease. A pedal wrench has a rubber grip for easier removal.
Bike degreaser spray
Helps loosen stubborn pedals.
Steps to remove pedals
View of the drive side
1. Face the drive side of the bike. This is the right-hand side of the bike with the with the chainset and chain. Turn the crank arm to the 3 o'clock position.
We find that using your foot allows you to generate additional leverage and ensure that you are positioned in a way that will prevent you from striking sharp edges on the bike or losing your balance if the pedal should suddenly decide to break loose.
Non-drive side
5. Turn the bicycle around. The non-drive side (left-hand side) is now facing you.
6. Rotate the crank arm to 9 o'clock so it is horizontal with the floor.
7. Position the spanner or Allen key in line with the crank arm.
8. Push down with your foot onto the spanner. The spanner will rotate clockwise to loosen the pedal.
Positioning of an allen key to remove a pedal
Tips
Tip 1
If your pedals haven't been removed in a while, you might need to spray a little penetrating fluid, such as GT85 or Muc Off Bike Spray, to get them started. If, after a couple of turns, you've managed to expose a few threads then spray the fluid again, repeating every few threads until the pedals are free. A dry, corroded thread can become damaged if you remove the pedal without a little help from a lubricant or oil.
Tip 2
Before removing the pedals, protect yourself from possible injury by placing your chain onto the big ring.
Tip 3
Remember, the left pedal spindle is reverse threaded. Turn it clockwise to remove the pedal when facing the crank arm. The right side is normal, so turn it anti-clockwise to loosen it.To loosen pedals using an Allen key, you will need to insert the Allen key into the pedal axle opposite the pedal.
Tools for removing pedals
Sale
Condor Individual Allen Key
Condor Individual Allen Key
Professional quality, L-shaped allen key wrench.
GT85 Bike Cleaner and Spray Lubricant
GT85 Bike Cleaner and Spray Lubricant
A long-standing favourite with professional and amateur bike mechanics alike GT85 Spray Lubricant 400ml is a general-purpose cleaning/lubricating spray fortified with PTFE.

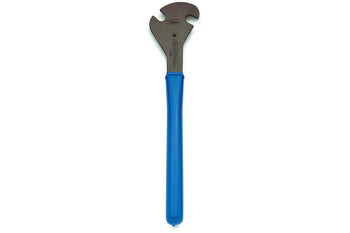

Park Took PW-4 Professional Pedal Wrench
Park Took PW-4 Professional Pedal Wrench
A heavy duty pedal wrench for serious workshop use.

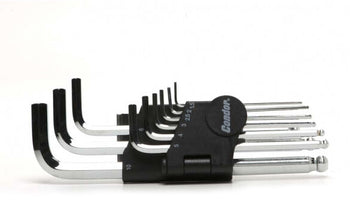

Condor Allen Key Set
Condor Allen Key Set
Tired of searching the bottom of your tool box for the right allen key? The Condor Allen Key Set features a plastic holder, and the long handle provide great leverage.
Condor Allen Key Set
Condor Allen Key Set
Tired of searching the bottom of your tool box for the right allen key? The Condor Allen Key Set features a plastic holder, and the long handle provide great leverage.

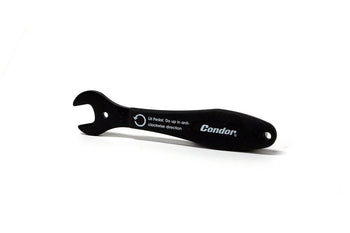

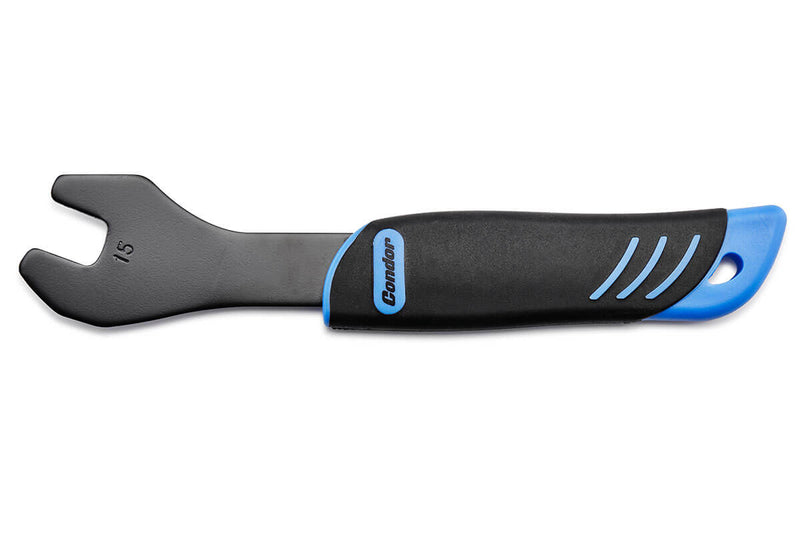

Condor Pedal Wrench with Rubberised Handle
