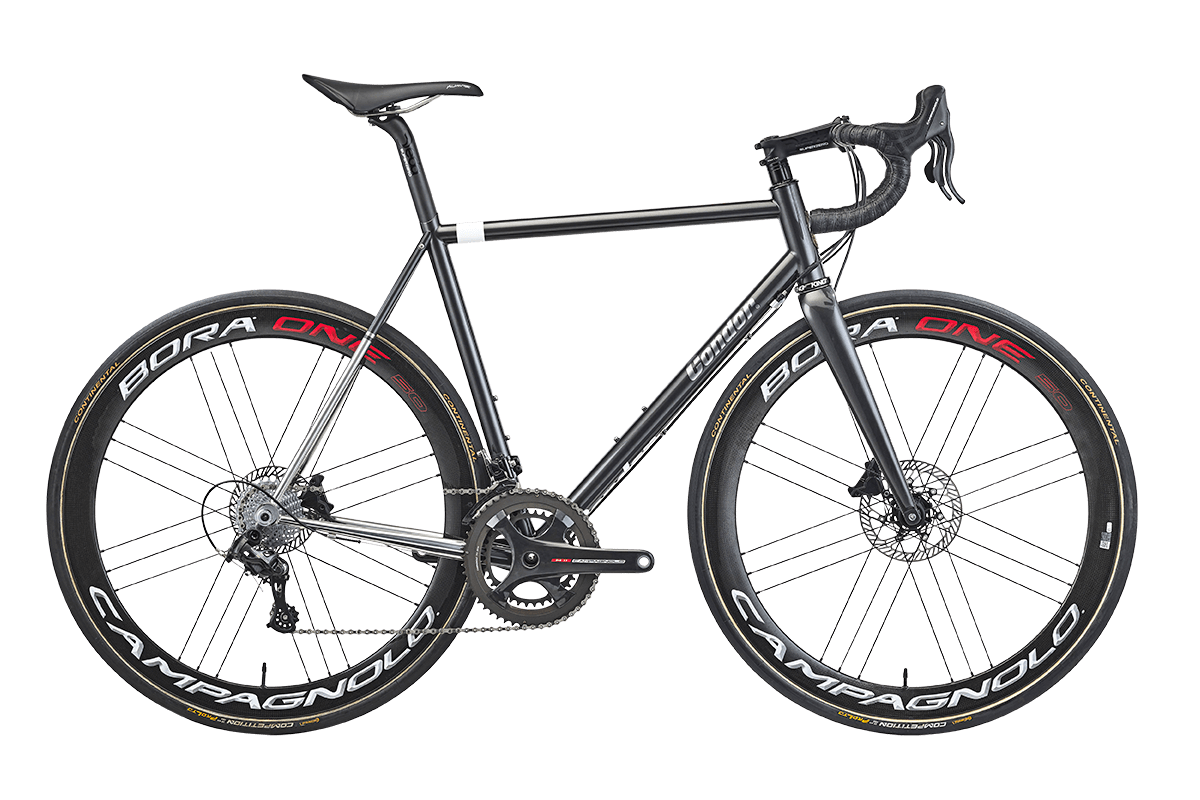

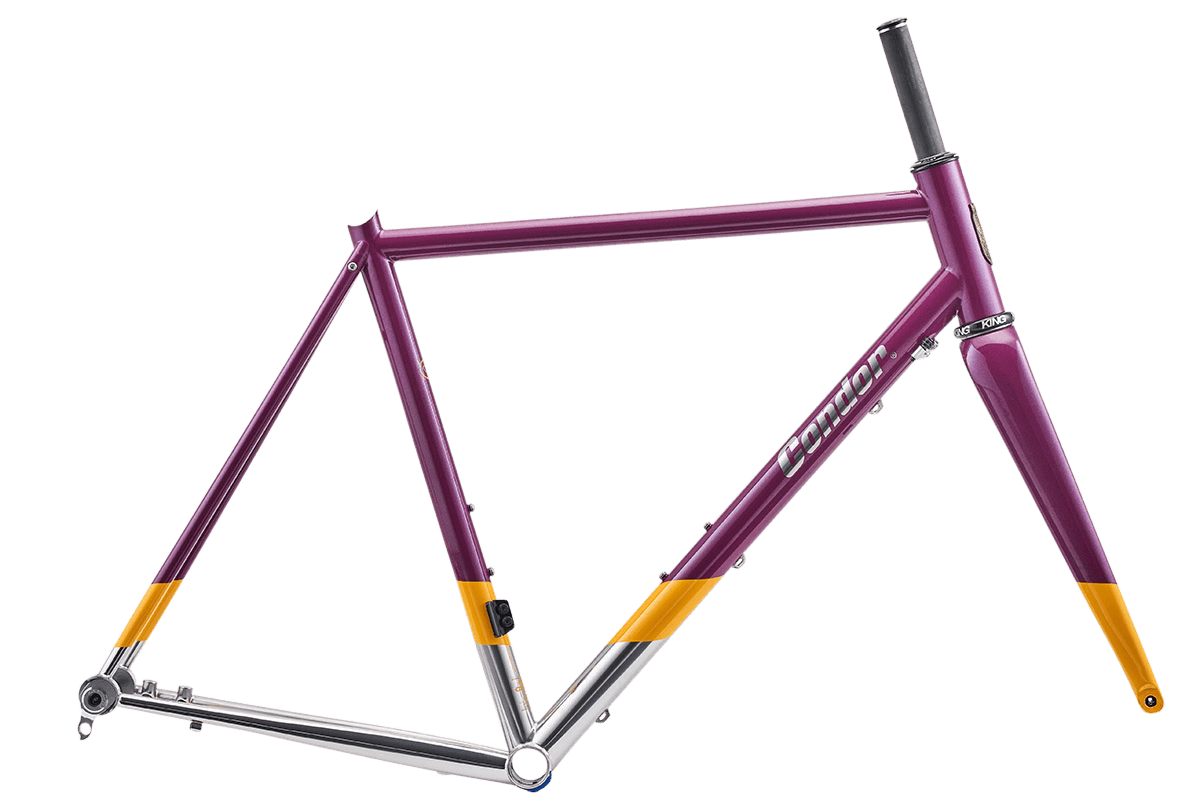

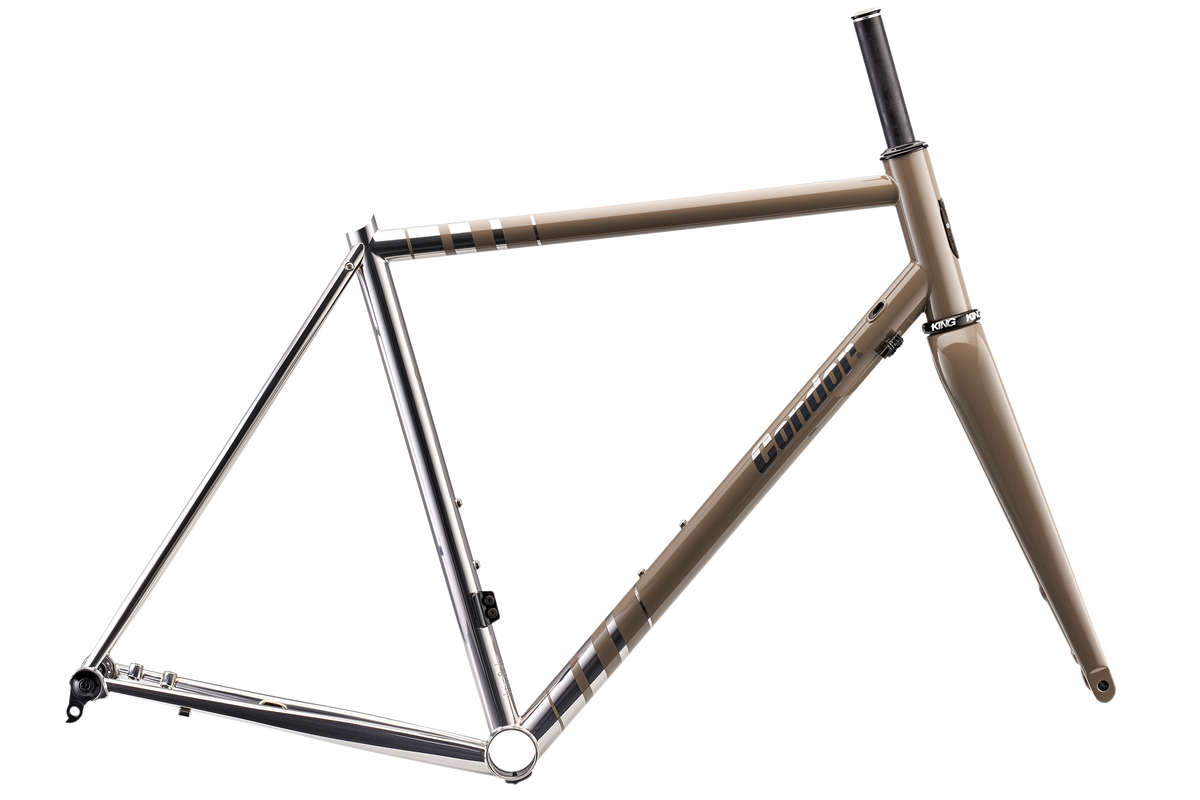

Acciaio Stainless Disc

Flawless, fully custom stainless steel with disc brakes

Frameset €5.200,00
Size
Colour
HEADSET & SEAT
CLAMP COLOUR

What to expect

Your frameset will arrive fully prepared and ready to build with the forks and headset fitted and the fork steerer left uncut. If you have any special requirements please let us know in the order notes.

What's included?

Frame
Fork
Chris King headset
Seat clamp
Thru-axles
Smart cabling components

Delivery information

Shipping is free worldwide! Learn More
Would you like to add anything else? Choose from the most popular options below.

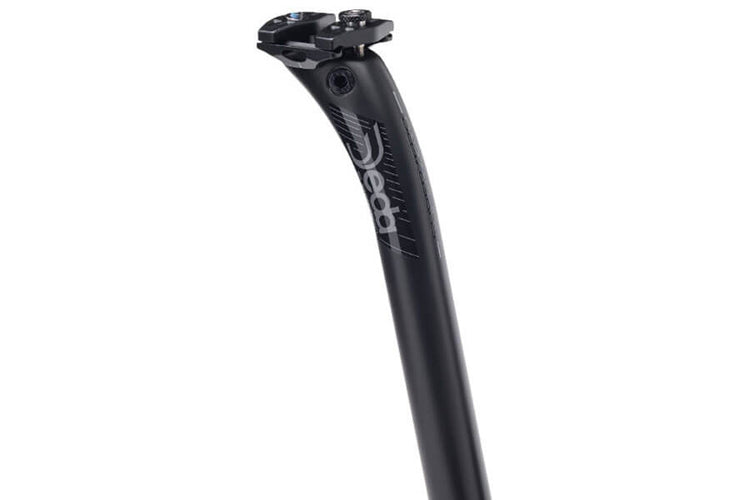

Deda Superzero Seatpost 31.6MM / POLISH ON BLACK
Deda Superzero Seatpost 31.6MM / POLISH ON BLACK

Superlight carbon seatpost

+ €195,00

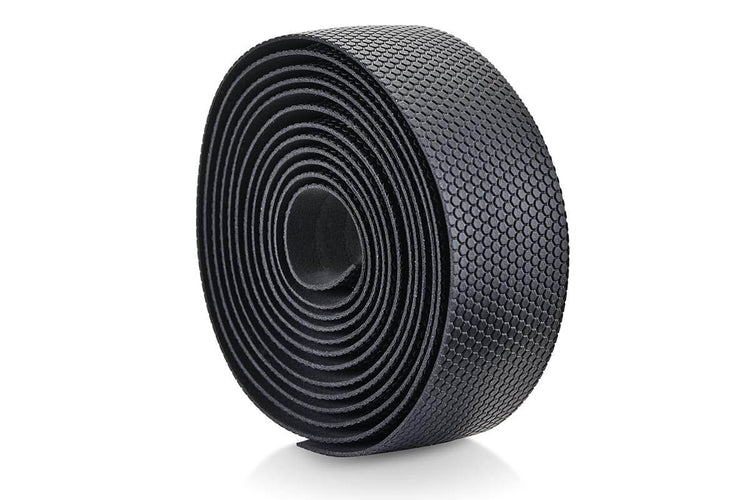

Condor Supremacy Shockproof Handlebar Tape 3MM / BLACK
Condor Supremacy Shockproof Handlebar Tape 3MM / BLACK

Excellent grip and cushioning

+ €36,00

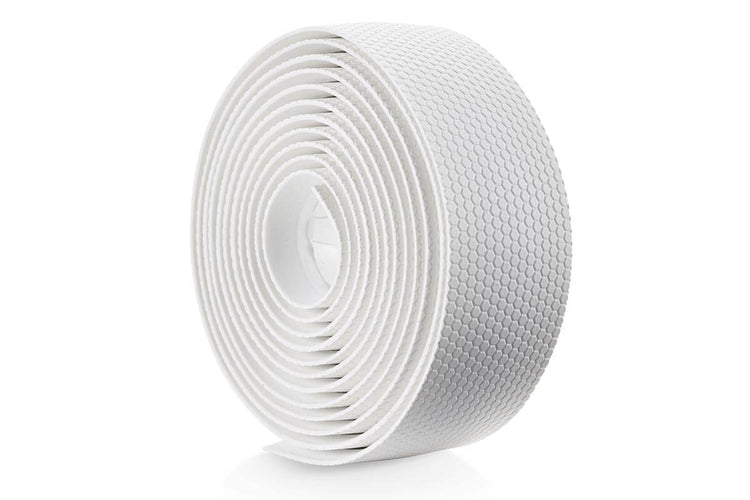

Condor Supremacy Shockproof Handlebar Tape 3MM / WHITE
Condor Supremacy Shockproof Handlebar Tape 3MM / WHITE

Excellent grip and cushioning

+ €36,00

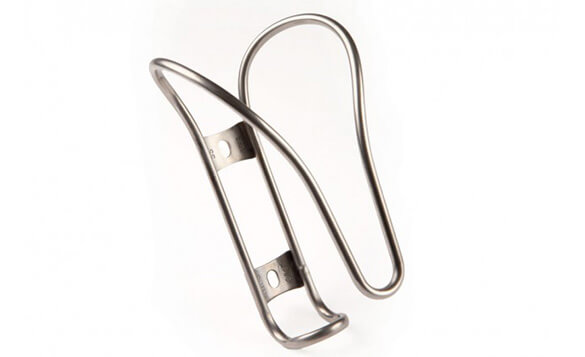

King Cage Iris Stainless Steel Bottle Cage Default Title
King Cage Iris Stainless Steel Bottle Cage

The finishing touch for your bike

+ €32,00

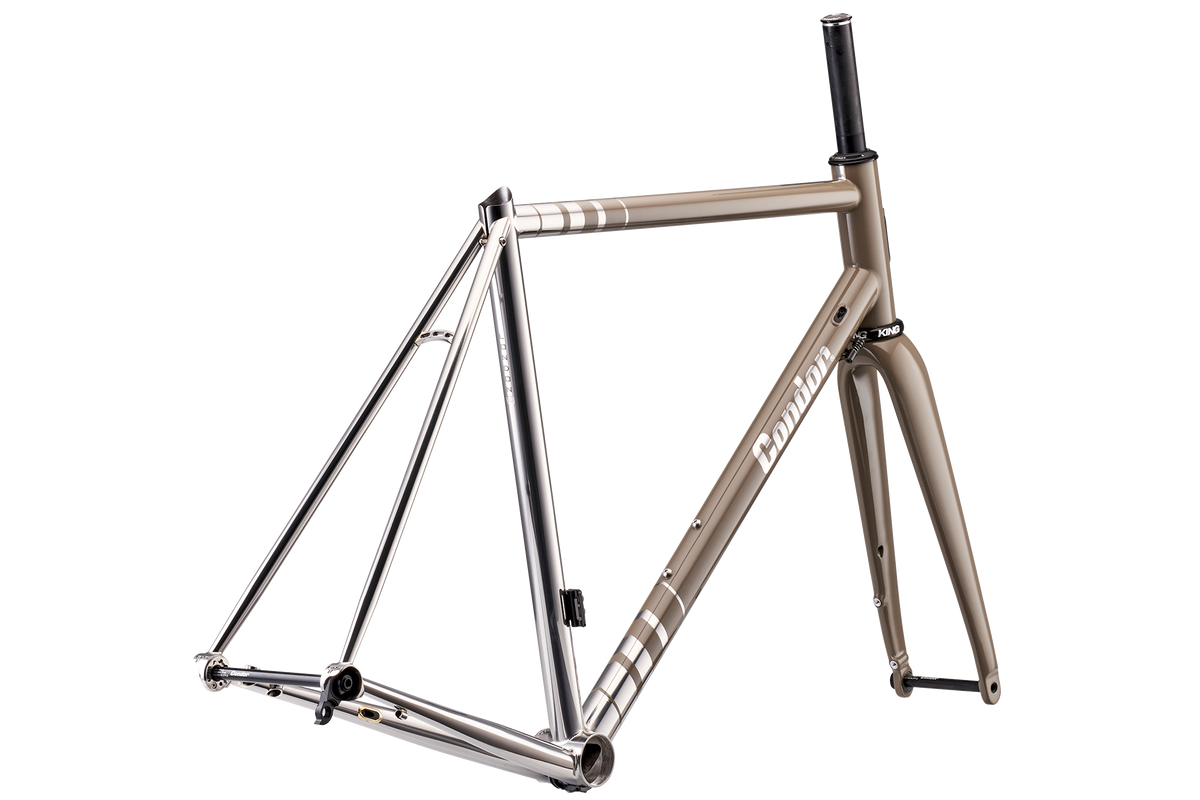

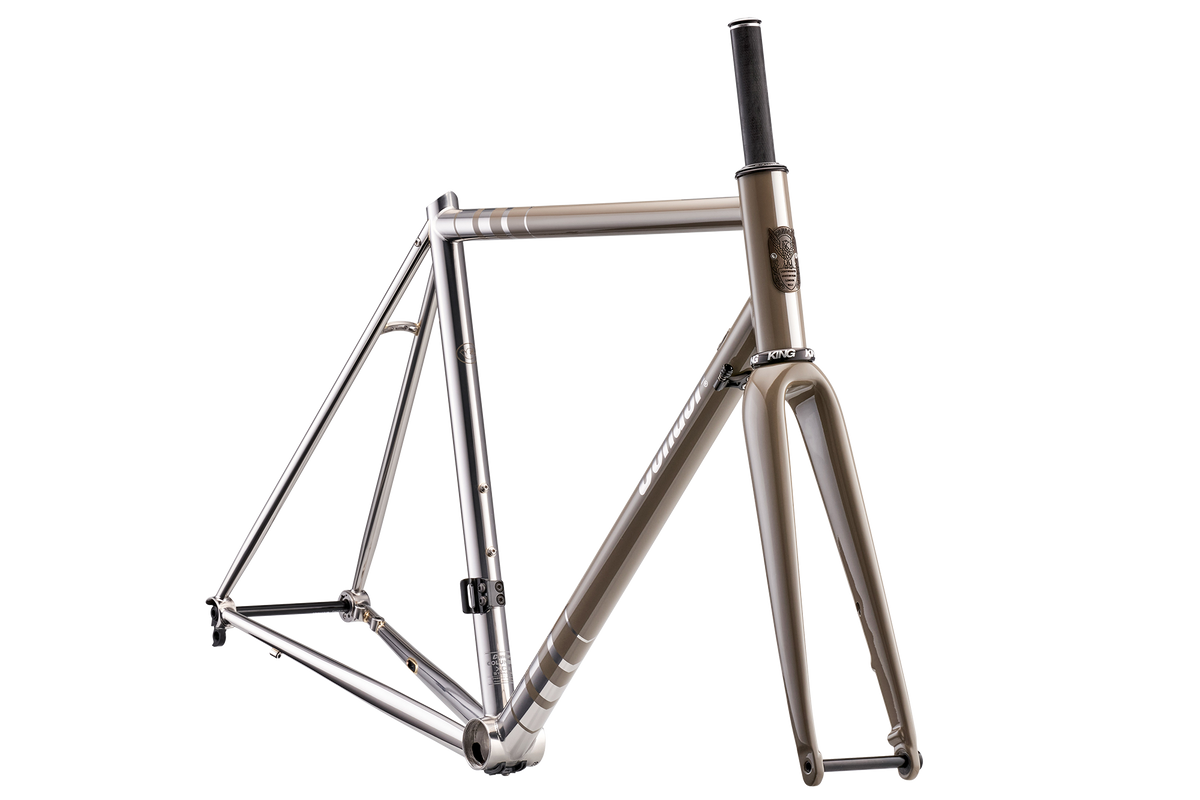

Condor Acciaio Stainless Disc Frameset
Condor Acciaio Stainless Disc Frameset

Flawless, fully custom stainless steel with disc brakes

Frameset

Size
CUSTOM
Colour
CUSTOM

Sub-total

€5.200,00
In Stock Ready for dispatch. Ready for dispatch. This item is available for collection only. Order now and pickup in store. This item is available to pre-order and will be shipped as soon as it arrives.
Out Of Stock Sorry, currently out of stock.

Interested in a bike?

Book an appointment

Handmade in Italy

Built by hand since 1948.

5 Year Warranty

We've got you covered.

Bike Fitting Included

Simply visit us in store.

Frame

Columbus XCr stainless steel, 1650g

Fork

Condor straight bladed full carbon monocoque, 350g

Tyre Clearance

Up to 32mm

Fit

Up to you, custom geometry is included

Brake Type

Flat mount disc

Complete Bike From

£5190.00

About this model

You've poured untold hours, miles and sweat into your passion and now Condor delivers a bicycle frame in a material that will lift your experience of cycling to new heights; which makes you want to go out and ride again and again. Stainless steel as a raw material is notoriously difficult to work with, complicating and extending manufacturing times, but the end result is a stunning ride which melds top-tier performance with the ability to be ridden all day, into one, single, purebred bicycle. Each Acciaio Stainless is built upon the request of our customers and is available with endurance, race, audax or custom geometry. Each bicycle is offered with a full fit and is available in up to 50 colours.
Lead time for this model is 6-12 months from when you finalise the paint and colour scheme.

Frame Geometry Diagram
46 49 52 55 58 61
Performance Geometry Seat tube (centre to centre) [A] (cm) 41 44 47 50 53 56
Performance Geometry Seat tube (centre to top) [B] (cm) 46 49 52 55 58 61
Performance Geometry Top tube (horizontal) [C] (cm) 51.3 51.8 53.7 55.5 57 58
Performance Geometry Seat tube angle [D] (cm) 75 74 74 73.5 73 72.5
Performance Geometry Head tube angle [E] (cm) 71 71.5 72 73.5 74 74
Performance Geometry Head tube length [F] (cm) 11 12 13.5 16.5 19.5 22.2
Performance Geometry Chainstay length [G] (cm) 40.5 40.5 40.5 40.5 40.8 41
Performance Geometry Bottom bracket height [H] (cm) 26.5 26.5 26.5 26.5 26.5 26.5
Performance Geometry Bottom bracket drop (mm) 70 70 70 70 70 70
Performance Geometry Stack (cm) 50.6 51.7 53.3 56.6 59.7 62.3
Performance Geometry Reach (cm) 37.7 37 38.4 38.7 38.7 38.5
Performance Geometry Fork offset (mm) 43 43 43 43 43 43
Performance Geometry Fork length (cm) 37.0 37.0 37.0 37.0 37.0 37.0
Endurance Geometry Seat tube (centre to centre) [A] (cm) 42 45 48 51 54 57
Endurance Geometry Seat tube (centre to top) [B] (cm) 46 49 52 55 58 61
Endurance Geometry Top tube (horizontal) [C] (cm) 51.3 51.8 53.7 55.5 57 58
Endurance Geometry Seat tube angle [D] (cm) 75 74 74 73.5 73 72.5
Endurance Geometry Head tube angle [E] (cm) 71 71.5 72 73.5 74 74
Endurance Geometry Head tube length [F] (cm) 11 12 14.5 17.5 20.5 23.5
Endurance Geometry Chainstay length [G] (cm) 40.5 40.5 40.5 40.5 40.8 41
Endurance Geometry Bottom bracket height [H] (cm) 26.5 26.5 26.5 26.5 26.5 26.5
Endurance Geometry Bottom bracket drop (mm) 70 70 70 70 70 70
Endurance Geometry Stack (cm) 50.7 51.8 54.4 57.7 60.8 63.7
Endurance Geometry Reach (cm) 37.7 36.9 38.1 38.4 38.4 37.9
Endurance Fork offset (mm) 40 40 40 40 40 40
Endurance Geometry Fork length (cm) 37.0 37.0 37.0 37.0 37.0 37.0

Chris King InSet7 headset included
Scalloped pinch bolt
Bottom bracket: BSA as standard or your choice
Seat tube (internal): 31.6mm
Seat tube (external): 33.0mm
Front derailleur attachment: braze-on
Headset: ZS44/EC44
O.L.D.: 142mm
Thru-axles: 12x100mm (front); 12x142mm (rear)
Disc brake mounts: flat mount

If you would like to visit us in the store, here is how the process works.

how-it-works-magnifying-glass

1. Choose your model

We make a wide range to suit all styles and disciplines. Our full range is available to view online and in-store, but don't worry if you're not sure what's right for you — we're here to help!

2. Have a fitting

We'll ensure that you'll ride in complete comfort and get the best performance from your bike. If you can't visit us in store, we can help with the fit by phone or email.

3. Make it your own

We'll work with you to choose components that suit your requirements, right down to details such as handlebar tape colour. We are here to advise on everything.

4. We build it

We'll assemble your bike in London. Once built, we'll arrange a time and date with you for the handover, where we'll run through everything and help with anything else you may need.

If you can’t book an appointment to visit us in-store, we can help by phone, email, or live chat

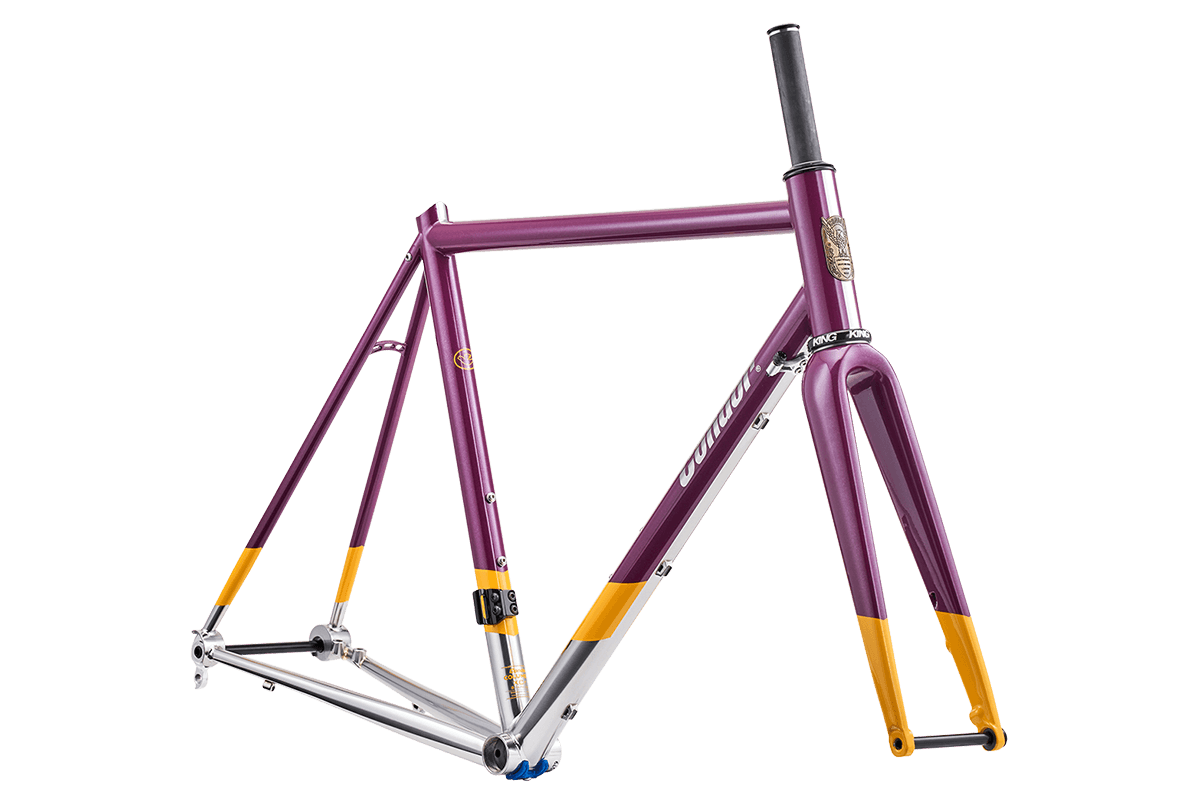

Your design, your colours, no extra cost

Your design, your colours, no extra cost

Attention to detail and design touches make the Acciaio Stainless a beautiful piece. There is no additional charge for extra colours, multiple polished sections or unique designs. Our designers work alongside you to bring the Acciaio Stainless to life. From polished logos and stays to fades, there are no hidden costs; you can have your frame painted the way you want it. Need rack mounts or extra bottle cage bosses? There is no additional charge. This model is made to order to your design and colour scheme. The lead time for the frameset is estimated 12 months from when the design is finalised

XCr stainless, the ultimate steel

XCr stainless, the ultimate steel

Unlike other stainless steel tubesets, Columbus uses seamless stainless steel, which enables the tube walls to be drawn extremely thin at just 0.4mm. This keeps the weight low whilst having a higher stiffness to weight ratio than Titanium. It is corrosion resistant, too.

44mm head tube

44mm head tube

Our 44mm head tube improves control and performance whilst keeping the elegance of a traditional stainless frame. We use the lightest stainless steel, XCr, which means the increase in headtube size does not affect frameweight compared to other stainless framesets.

Chris King headset included

Chris King headset included

Chris King headset is a coveted component. The Chris King Inset-7 headset is included as standard with all Acciaio Stainless models to provide a classic look. Made in USA. The legendary Chris King's headset is tough, smooth, and built to last for thousands of miles. You can also select Chris King headset in the colour of your choosing to suit your frameset design.
