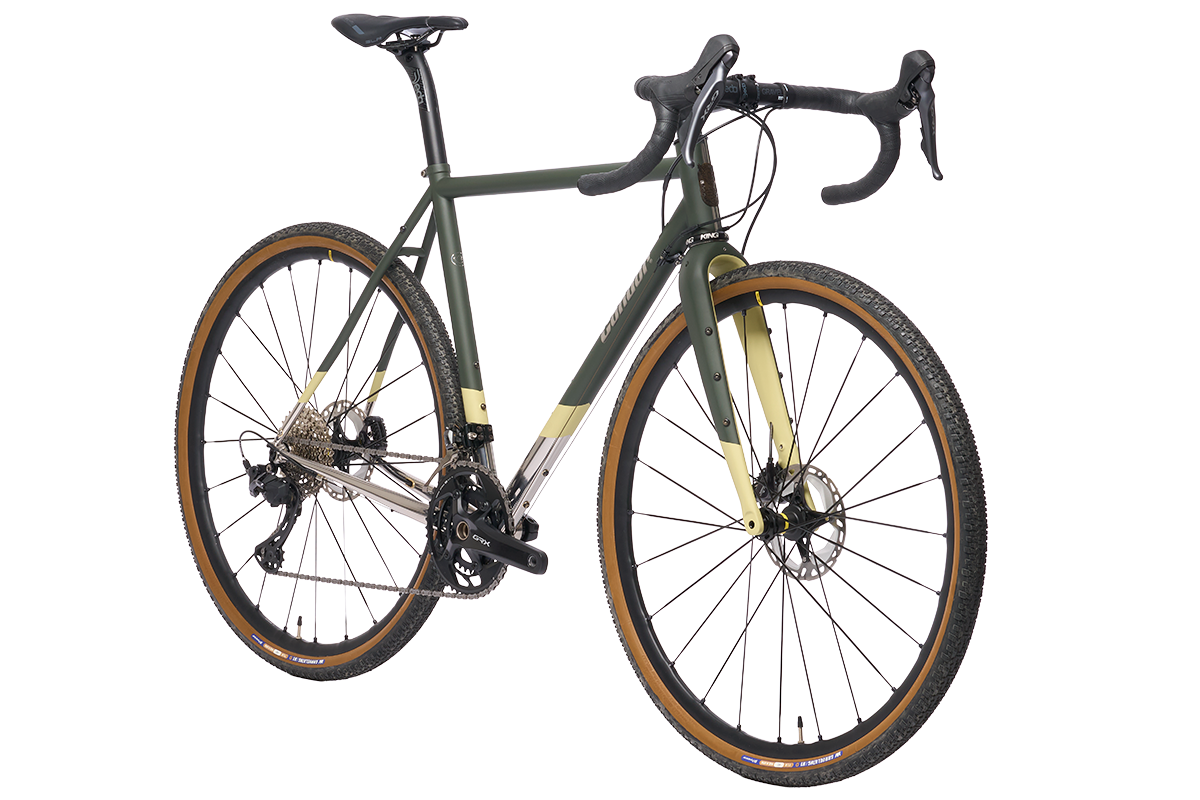

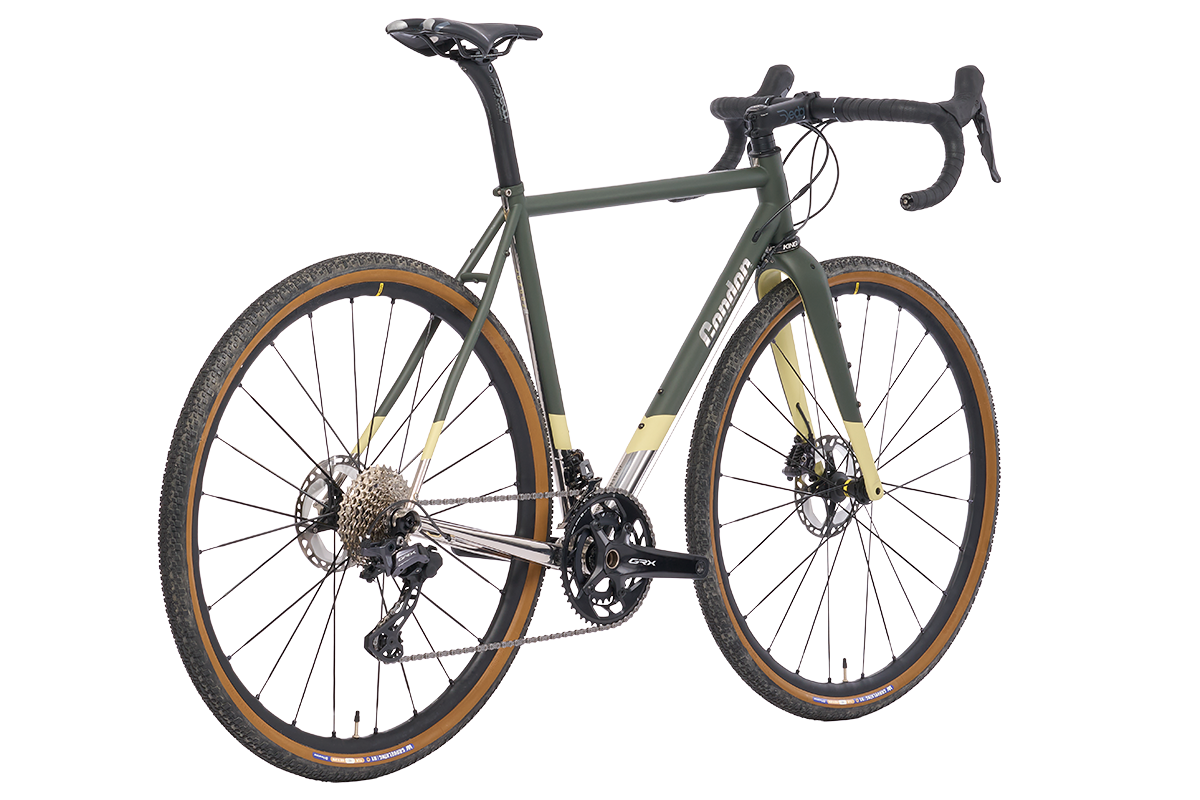

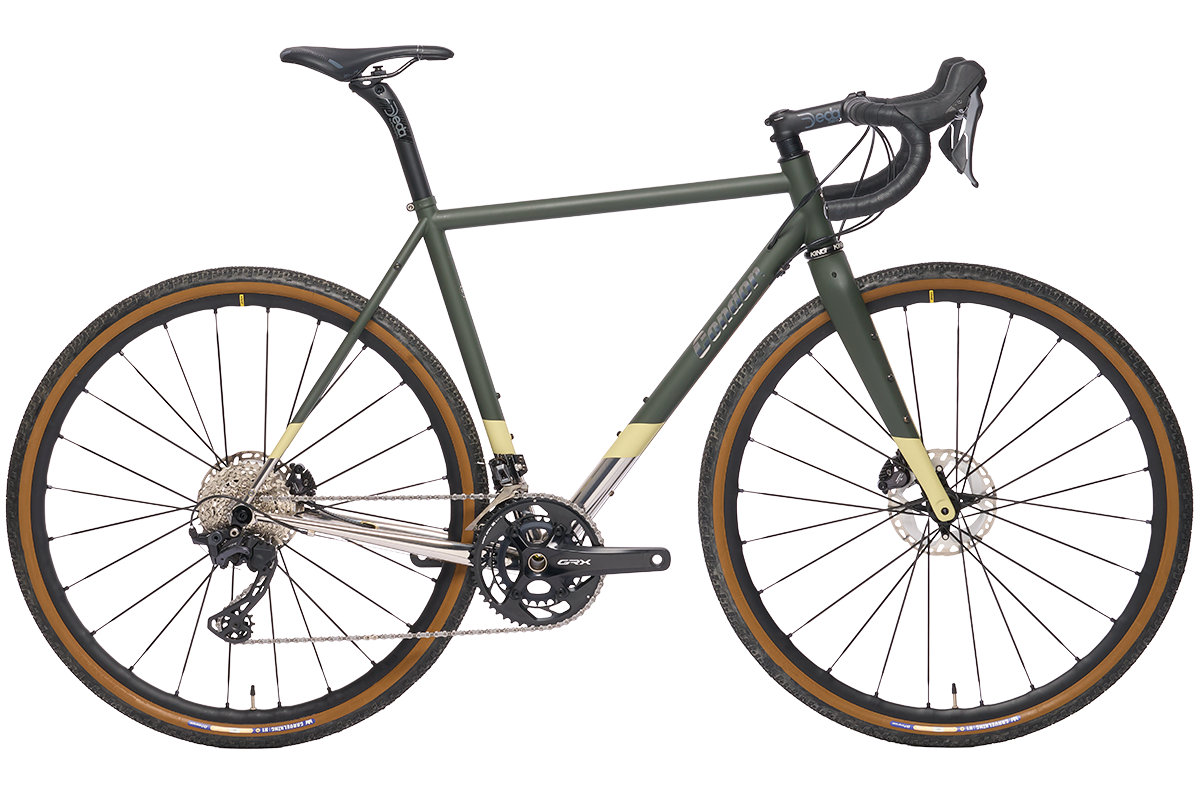

Gravel Stainless
Flawless, fully custom stainless steel adventure frameset
King Cage Stainless Steel Bottle Cage
Condor Supremacy Shockproof Handlebar Tape 3MM / BLACK
Condor Supremacy Shockproof Handlebar Tape 3MM / WHITE
Interested in a bike?
Book an appointment
Handmade in Italy
Built by hand since 1948.
5 Year Warranty
We've got you covered.
Bike Fitting Included
Simply visit us in store.
Frame
Columbus XCr stainless steel, 1800g
Fork
Condor Gravel full carbon monocoque, 450g
Complete Bike From
£5399.99
Tyre Clearance
Up to 42mm
Brake Type
Flat Mount disc with thru axles
Fit
Fast Endurance
About this model
If you believe the fun begins where the road ends, this adventure frameset will deliver bags of enjoyment. Handbuilt using Columbus XCr stainless steel tubing, the Gravel Stainless frameset will smooth the road on long hard days, taking you through canyons and across mountain ranges. There is clearance for 40mm tyres, and a 44mm head tube with Chris King headset serves up confident handling. All you need to worry about is whether you brought enough snacks!
Lead time for this model is 6–12 months from when you finalise the paint and colour scheme.
We make a handful of stainless steel frames with our house gravel geometry in set sizes. All you have to do is choose the paint colour, if your size is available the lead time in approximately 3-4 months, more detail below and optional extra features cannot be added.
| Feature | Price |
|---|---|
| Internal hydraulic cable routing | £220.00 |
| Dual cable routing Di2 & external mechanical | £180.00 |
| Top tube bosses (brazed upon request) | free |
| 1" 1/8 integrated headtube | £150.00 |
Chris King InSet7 headset included (choice of colours available)
Rack and guard mounts, includedd
Bottle cage under the downtube, included
Top tube mounts for bento-style bag, included in frameset price but must be requested during the ordering process
Integrated Seat Clamp Collar
External cable routing
Headtube: 44mm
Bottom bracket: BSA as standard or your choice
Seat tube (internal): 31.6mm
Seat tube (external): 33.0mm
Front derailleur attachment: braze-on
Headset: ZS44/EC44
O.L.D.: 142mm
Thru-axles: 12x100mm (front); 12x142mm (rear)
Disc brake mounts: flat mount
Thru-axles are included
Brake cable kit, if using Smart Cabling is included.
If you would like to visit us in the store, here is how the process works.
1. Choose your model
We make a wide range to suit all styles and disciplines. Our full range is available to view online and in-store, but don't worry if you're not sure what's right for you — we're here to help!
2. Have a fitting
We'll ensure that you'll ride in complete comfort and get the best performance from your bike. If you can't visit us in store, we can help with the fit by phone or email.
3. Make it your own
We'll work with you to choose components that suit your requirements, right down to details such as handlebar tape colour. We are here to advise on everything.
4. We build it
We'll assemble your bike in London. Once built, we'll arrange a time and date with you for the handover, where we'll run through everything and help with anything else you may need.
If you can’t book an appointment to visit us in-store, we can help by phone, email, or live chat
44mm head tube with Chris King headset
We pair our performance steel with the lightest fork possible. Our gravel fork is full carbon monoccoque with integrated brake cable to keep it away from snagging branches and flying mud. Our 44mm head tube improves control around the technical trail and in slippery mud, so you have the confidence to stay off the brake and enjoy the ride. A Chris King headset is included with all stainless frameset purchases.
Ultralight premium carbon gravel fork
The ultralight, carbon utility fork provides not only stability and control, but three mounts for a front rack, bottle cage, or a multitude of bags that are designed for this mounting system, giving you accessible storage on big days out on the trails. Developed by Condor, the 400g carbon monocoque fork features a carbon steerer, internal cable routing, and discrete mudguard mounts.
Adventure geometry
Modern road geometry paired with off-road ability. We have relaxed the head angle and adjusted the chainstay length so you can comfortably cover kilometres on the road, as well as sweep, skid, and drift with glee on the trails. The frame features multiple mounting options across the down tube and forks for more carry capacity, whether it be for hydration or bike-packing bags. The performance gravel geometry is based around our road bike models, tweaked for added stability so you can cover great distances on rough terrain as efficiently and speedily as possible.
XCr stainless, the ultimate steel
Unlike other stainless steel tubesets, Columbus uses seamless stainless steel, which enables the tube walls to be drawn extremely thin at just 0.4mm. This keeps the weight low whilst having a higher stiffness to weight ratio than Titanium. It is corrosion resistant, too.
Wide gravel tyre clearance
Nothing is off limits. Carve corners with conviction and grip the dirt as you descend wind-lashed Scottish passes or to the rich clay soils in Granada, Spain. The frame boasts 43mm clearance and is 650b compatible, too, should comfort be your focus. Or choose 40mm tyres from our favourite tyre brands for a race-ready setup.
Ready for any adventure, the Gravel Stainless frameset features mounts for racks and mudguards. This allows you to easily carry luggage for touring or bikepacking and stay dry in all conditions. If you prefer a minimalist look and don't require these mounts, please request that they are not brazed onto the frame when you place your order.
Your design, your colours, no extra cost
Attention to detail and design touches make the Condor Stainless unique to you. Choose from fifty paint colours, and select a design from our library or add your own touches. From polished logos and stays to fades, we’ve got lots of popular frame design ideas that are included in the price to help to design your frame. Check out some of the popular choices below.
Popular Design 1: Future Fade
This design features graduated bands on the top and down tube and polished rear stays. It looks great in a single colour, you can choose from one of our 50 custom colours.
Popular Design 2: Horizontal Colours
This design was first introduced with our team issue bikes. It features two colours and polished chainstays and bottom bracket. Our example features purple and melon but you can select any two colours of your choosing or ask us for assistance.
Popular Design 3: The Classic
The simple design are the often the timeless ones. The front triangle of the bike is painted in one of our 50 colour options and the rear is left exposed, some riders choose to paint a portion of the rear seatstays, as shown in our example.
Popular Design 4: The Heritage
Seat tube decals are often found on Condor frames dating from the fifties and sixties. This design is a version of that, where we have polished bands on the seat tube we also apply our original Condor logo in the centre of the seat tube.
Down tube decal options
The down tube design is up to you or we can make suggestions to suit the colour and finish you’ve selected. One of the most popular down tube designs features an exposed stainless steel, polished Condor logo.
Matt or gloss finish?
Included in the design process is a choice of finishing lacquer. You can choose between modern matt or slick gloss.
